Installation

LIGHTING: SIDE TURN SIGNAL LIGHT ASSEMBLY (for Hatchback): INSTALLATION

INSTALLATION





1. INSTALL SIDE TURN SIGNAL LIGHT ASSEMBLY
(a) Connect the connector.

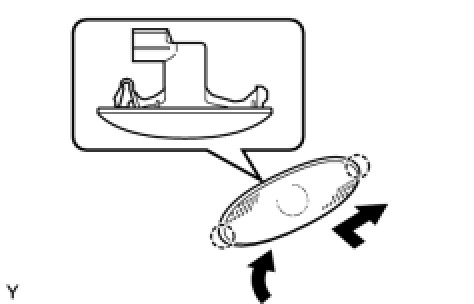

(b) Engage the 2 claws and install the side turn signal light assembly, as shown in the illustration.
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
