Removal

LIGHTING: SIDE TURN SIGNAL LIGHT ASSEMBLY (for Hatchback): REMOVAL

REMOVAL
HINT:
- Use the same procedure for both the RH and LH sides.
- The procedure described below is for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL





2. REMOVE SIDE TURN SIGNAL LIGHT ASSEMBLY

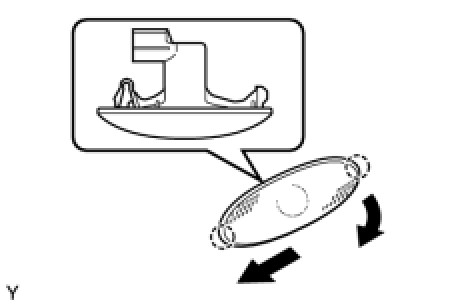

(a) Disengage the 2 claws and disconnect the side turn signal light.
(b) Disconnect the connector and remove the side turn signal light.
