Cabin Air Filter / Purifier: Service and Repair

Air Conditioning Filter

Removal

1. Turn the engine switch off.

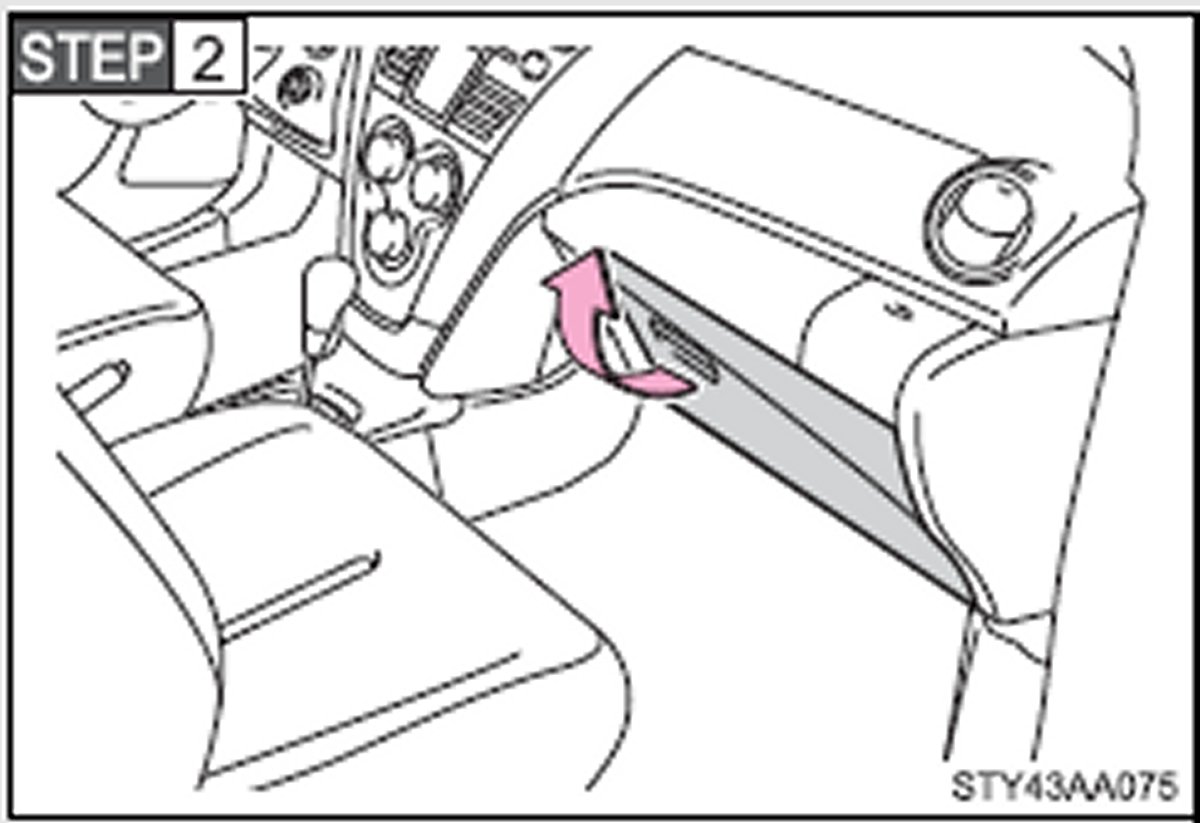

2. Open the glove box.

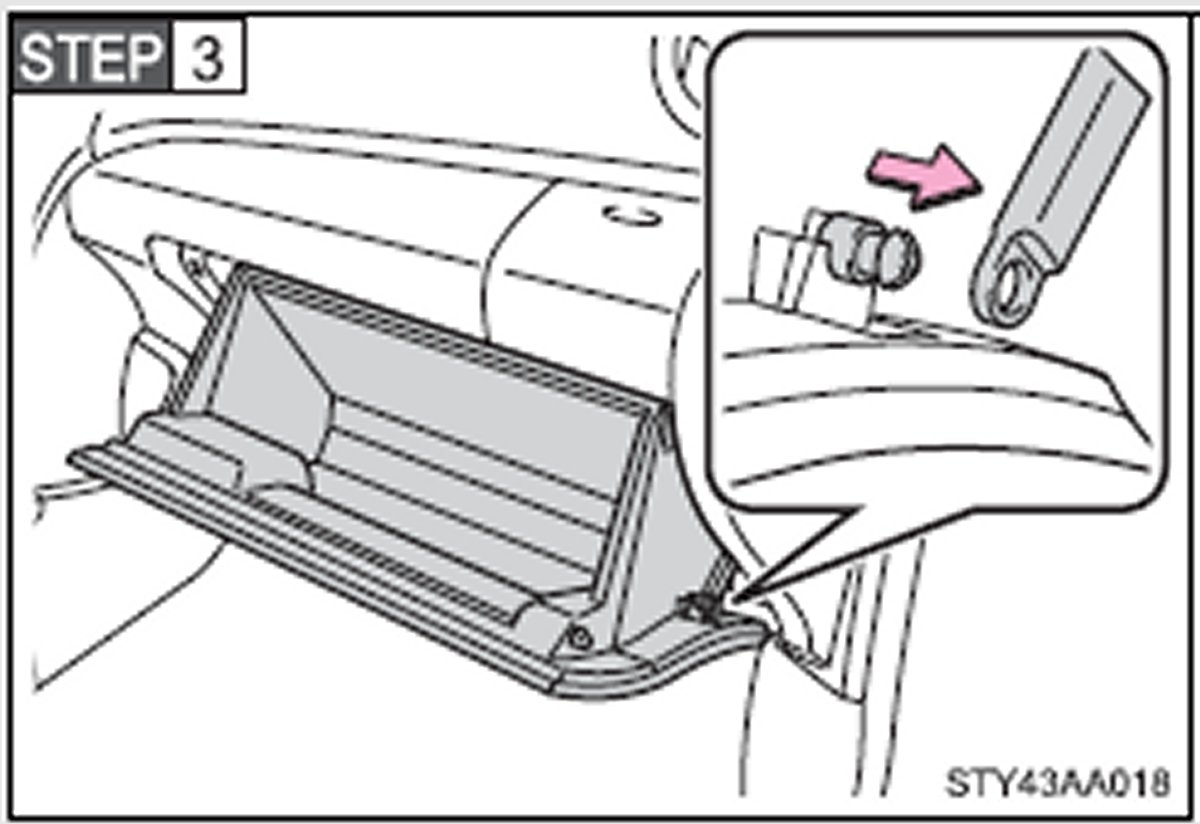

3. Slide off the damper.

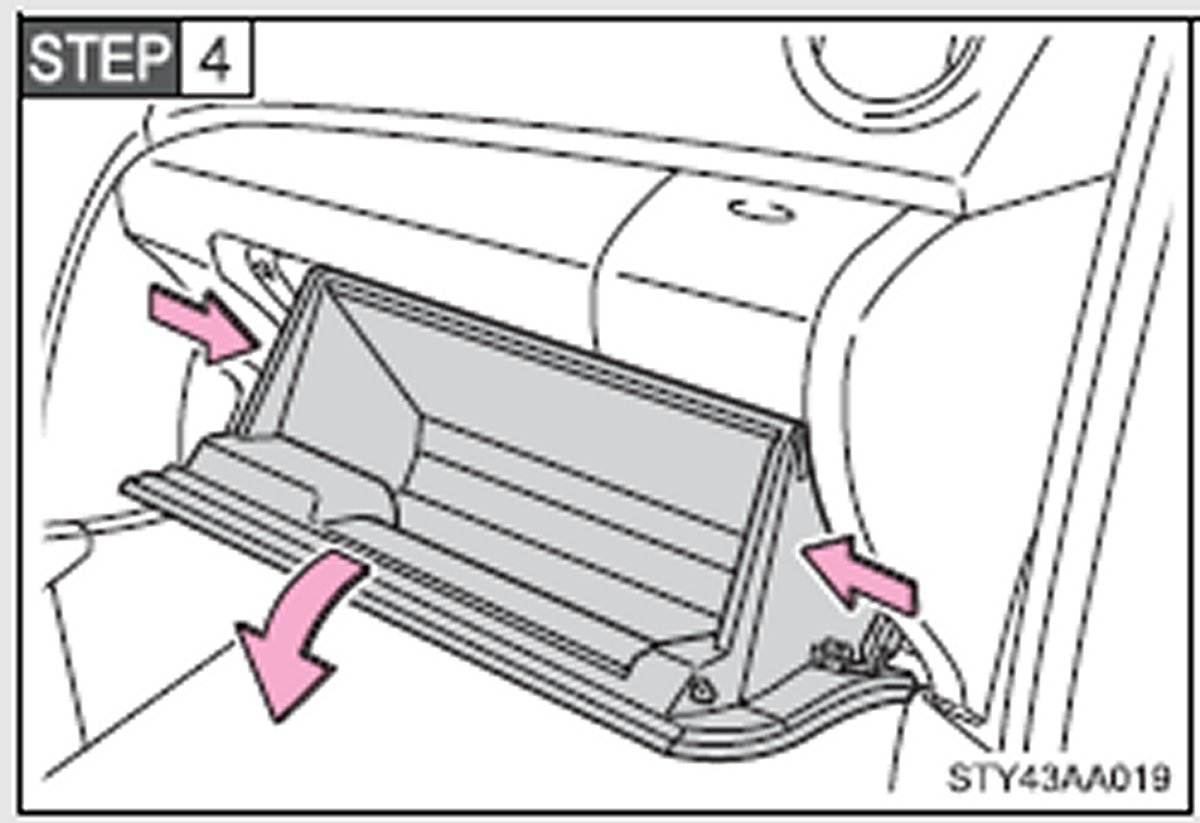

4. Push in each side of the glove box to disconnect the claws.

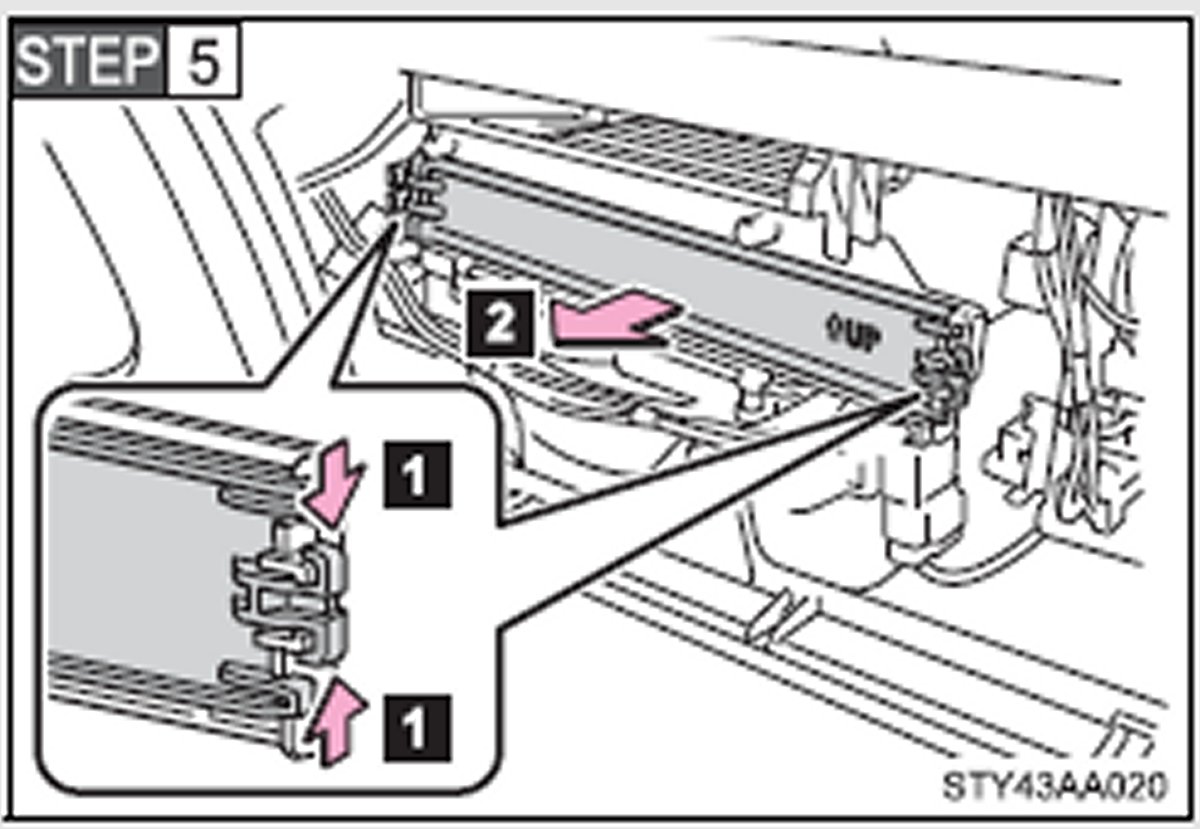

5. Pinch the latches, remove the filter cover.

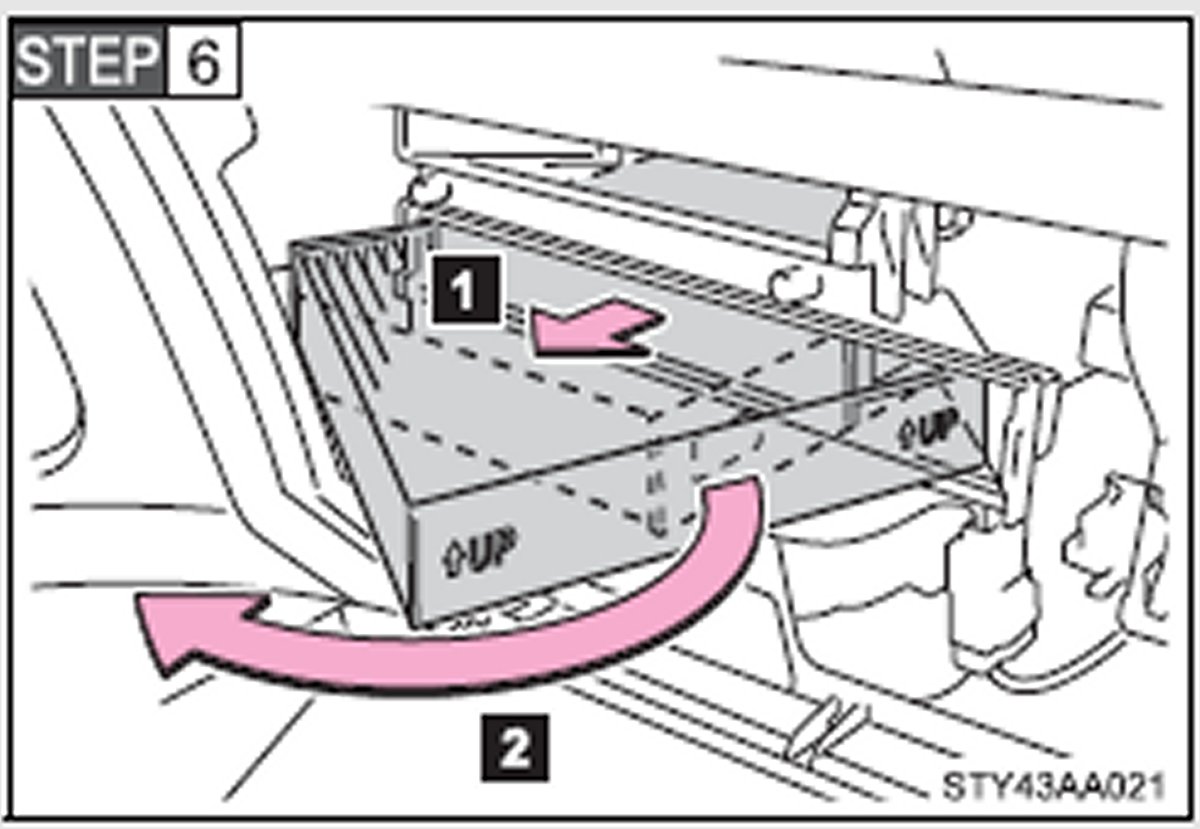

6. Pull out the filter, rotate the filter to remove it.

Installing:

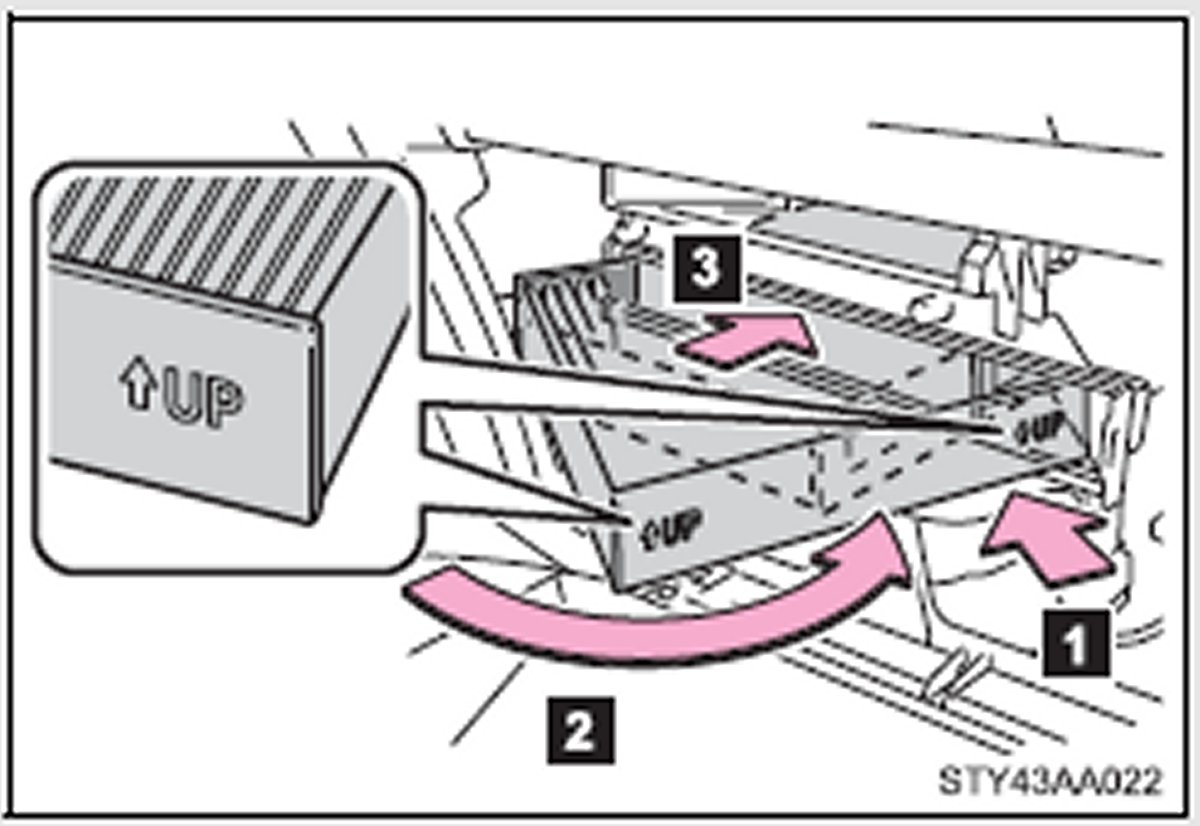

1. Set a new filter, rotate the filter, push in the filter.


Checking Interval

Inspect, and replace the air conditioning filter according to the maintenance schedule. In dusty areas or areas with heavy traffic flow, early replacement may be required.

If air flow from vents decreases dramatically, the filter may be clogged. Check the filter and replace if necessary.
