Inspection

TIRE AND WHEEL: TIRE AND WHEEL SYSTEM: INSPECTION

INSPECTION

1. INSPECT TIRES
(a) Check the tires for wear and proper inflation pressure.

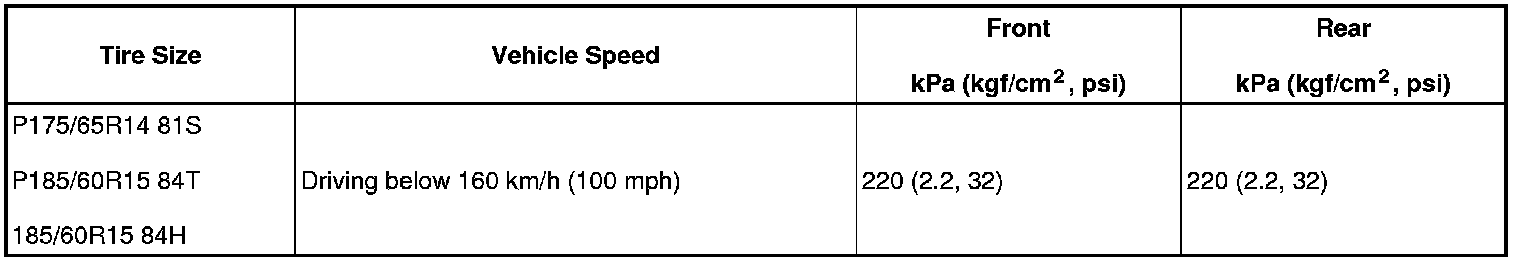

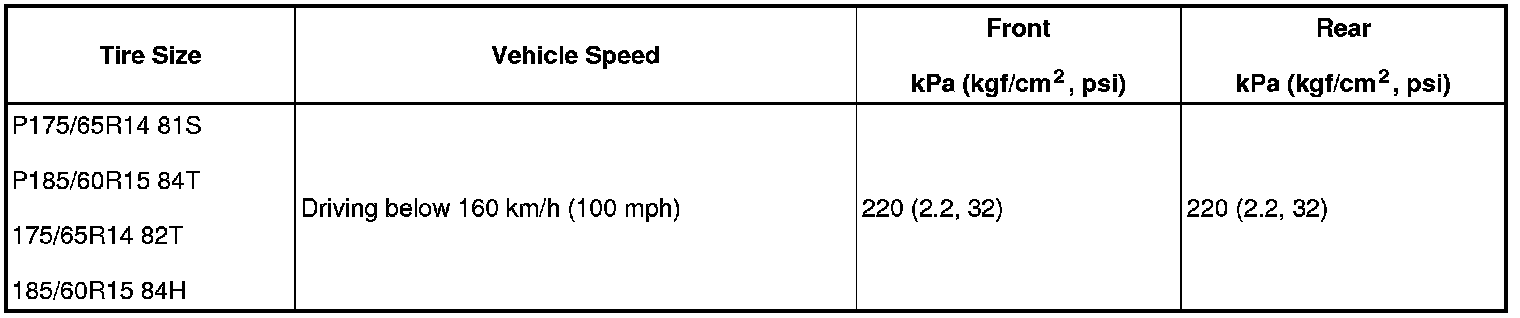

Cold tire inflation pressure:
for Hatchback






for Sedan

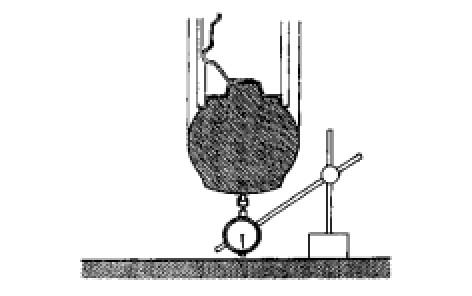

(b) Using a dial indicator, check the tire runout.
Tire runout:
1.4 mm (0.055 in.) or less
2. ROTATE TIRES

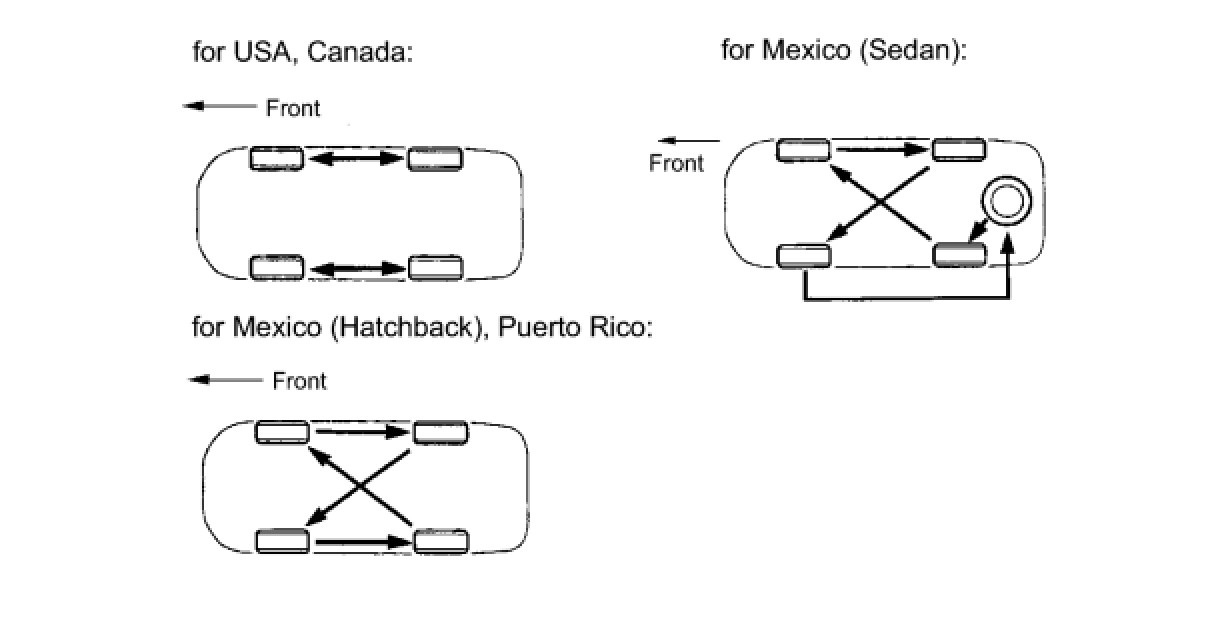

HINT: Rotate tires, as shown in the illustration.









3. INSPECT WHEEL BALANCE
(a) Check and perform off-car balancing.
(b) If required, perform on-car balancing.
Imbalance after adjustment:
8 g (0.018 lb) or less
4. INSPECT FRONT AXLE HUB BEARING
5. INSPECT REAR AXLE HUB BEARING
