Removal

AXLE: REAR AXLE HUB AND BEARING: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE REAR WHEEL
3. REMOVE REAR BRAKE DRUM SUB-ASSEMBLY Removal





4. DISCONNECT SKID CONTROL SENSOR WIRE (w/ ABS)

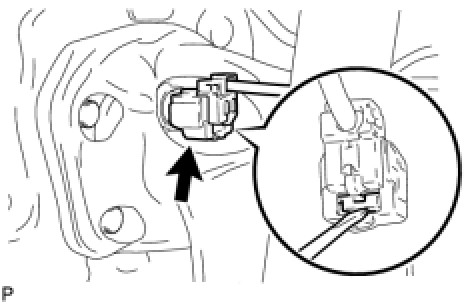

(a) Using a screwdriver, remove the claw of the connector lock portion and disconnect the skid control sensor wire connector.
NOTE: Do not remove the connector cover from the connector because the skid control sensor wire may be damaged.





5. REMOVE REAR AXLE HUB AND BEARING ASSEMBLY
(a) Remove the 4 bolts and remove the axle hub and bearing from the axle beam.
NOTE: Suspend the backing plate with a piece of rope.
