Power Distribution Relay: Testing and Inspection

1NZ-FE STARTING: ACC CUT RELAY: INSPECTION

INSPECTION





1. INSPECT ACC CUT RELAY
(a) Check the resistance.
(1) Using an ohmmeter, measure the resistance between the terminals.

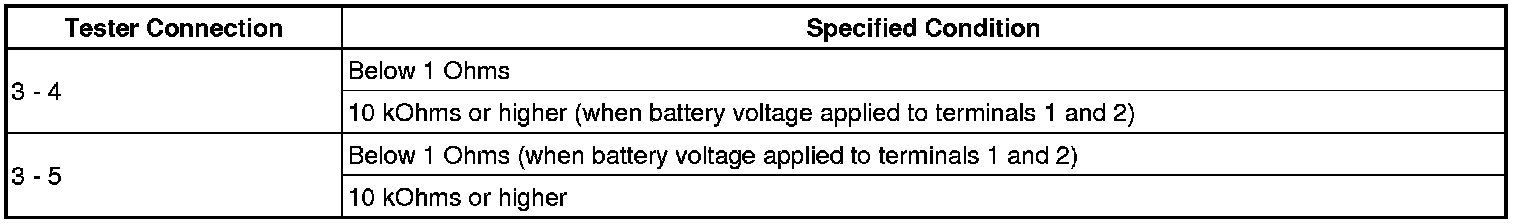

Standard resistence:






If the result is not as specified, replace the relay.
