Installation

1NZ-FE ENGINE CONTROL SYSTEM: CAMSHAFT POSITION SENSOR: INSTALLATION

INSTALLATION

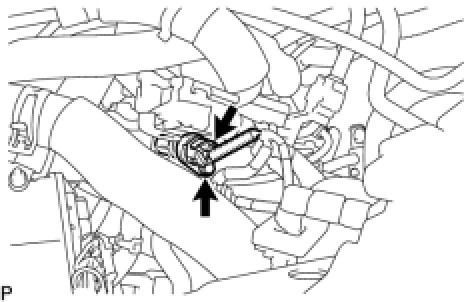

1. INSTALL CAMSHAFT POSITION SENSOR
(a) Apply a light coat of engine oil to the O-ring on the camshaft position sensor.
(b) Install the camshaft position sensor with the bolt.
Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)
NOTE: Do not twist the O-ring.

(c) Connect the camshaft position sensor connector.
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
3. CHECK FOR ENGINE OIL LEAKAGE
