Installation

1NZ-FE EMISSION CONTROL: AIR FUEL RATIO SENSOR: INSTALLATION

INSTALLATION





1. INSTALL AIR FUEL RATIO SENSOR

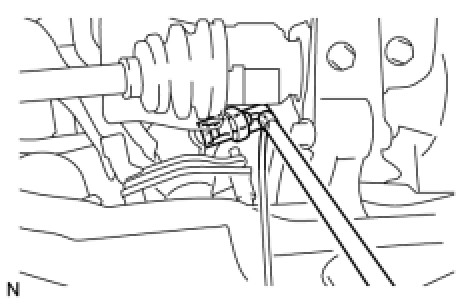

(a) Using SST, install the air fuel ratio sensor.
SST: 09224-00010
Torque: 44 Nm (449 kgf-cm, 33 ft-lbf)(without SST)
Torque: 40 Nm (408 kgf-cm, 30 ft-lbf)(with SST)
HINT: Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).

(b) Connect the air fuel ratio sensor connector and the clamp.
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
3. CHECK FOR EXHAUST GAS LEAKAGE
