Air Fuel Ratio Sensor

1NZ-FE EMISSION CONTROL: AIR FUEL RATIO SENSOR: INSPECTION

INSPECTION





1. INSPECT AIR FUEL RATIO SENSOR
(a) Check the resistance.
(1) Using an ohmmeter, measure the resistance between the terminals.

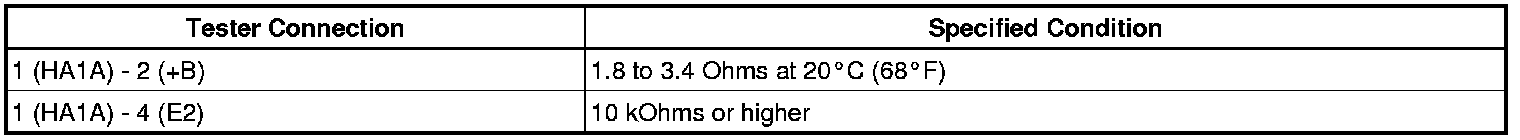

Standard resistance:






If the resistance is not as specified, replace the sensor.
