Heated Oxygen Sensor

1NZ-FE EMISSION CONTROL: HEATED OXYGEN SENSOR: INSPECTION

INSPECTION





1. INSPECT HEATED OXYGEN SENSOR
(a) Check the resistance.

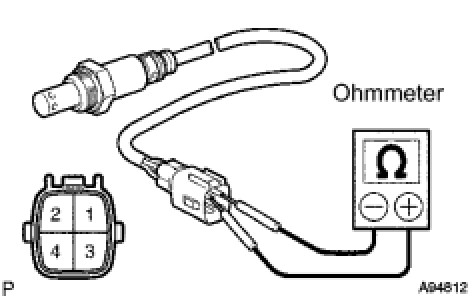

(1) Using an ohmmeter, measure the resistance between the terminals.

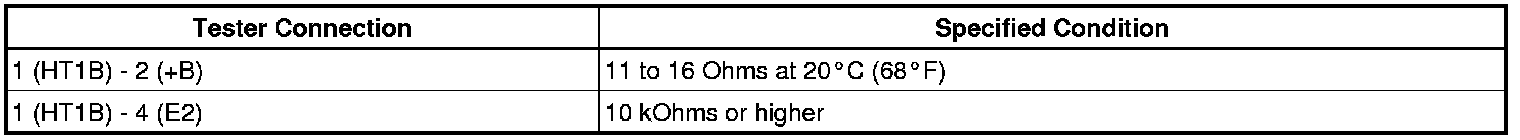

Standard resistance:






If the resistance is not as specified, replace the sensor.
