Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2009
>>
Yaris L4-1.5L (1NZ-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Specifications
>>
Mechanical Specifications
Mechanical Specifications

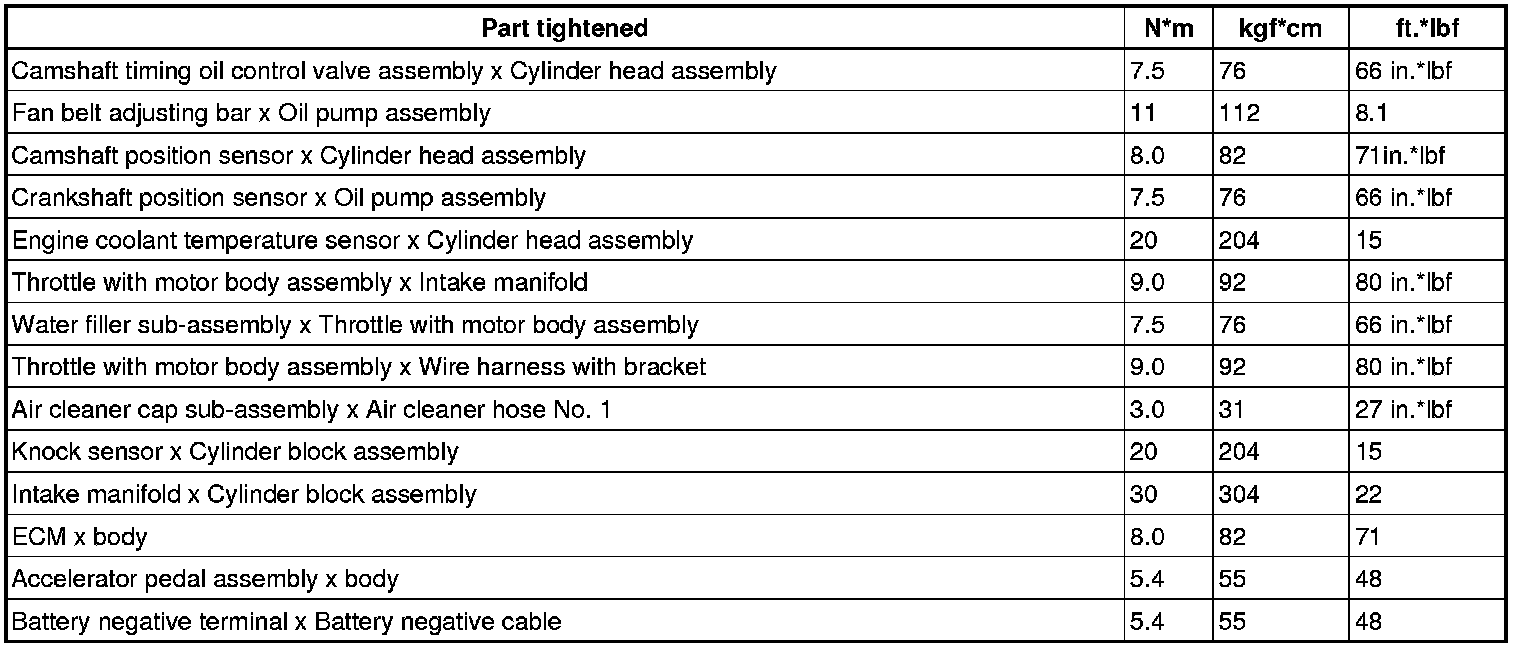

SERVICE SPECIFICATIONS: 1NZ-FE ENGINE CONTROL SYSTEM: TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS
