Removal

1NZ-FE EMISSION CONTROL: PURGE VALVE: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL





2. DISCONNECT FUEL VAPOR FEED HOSE NO. 1

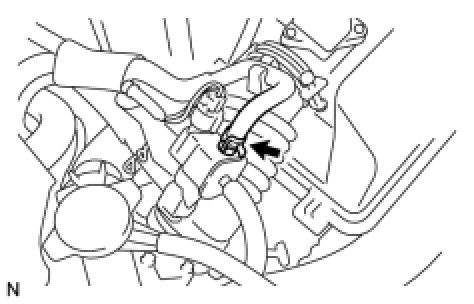

(a) Disconnect fuel vapor feed hose No. 1.





3. DISCONNECT FUEL VAPOR FEED HOSE NO. 2

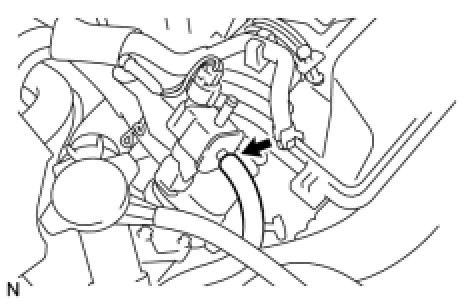

(a) Disconnect fuel vapor feed hose No. 2.





4. REMOVE PURGE VSV

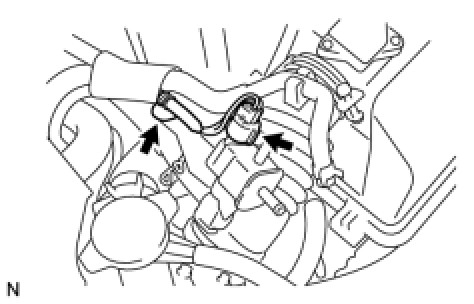

(a) Disconnect the purge VSV connector and disengage the clip.
(b) Remove the purge VSV.
