Emission Control Systems: Locations








1NZ-FE EMISSION CONTROL: EMISSION CONTROL SYSTEM: PARTS LOCATION

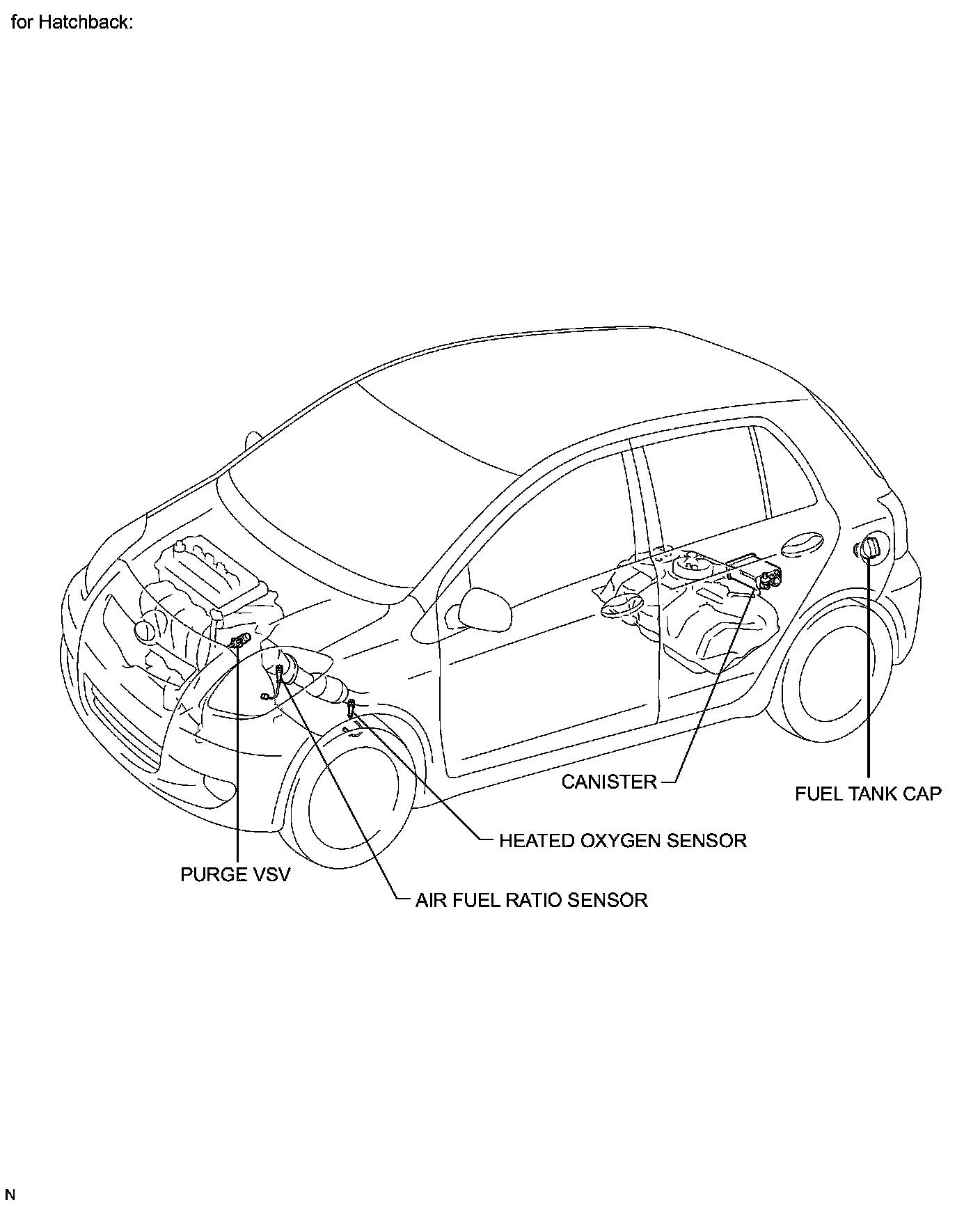

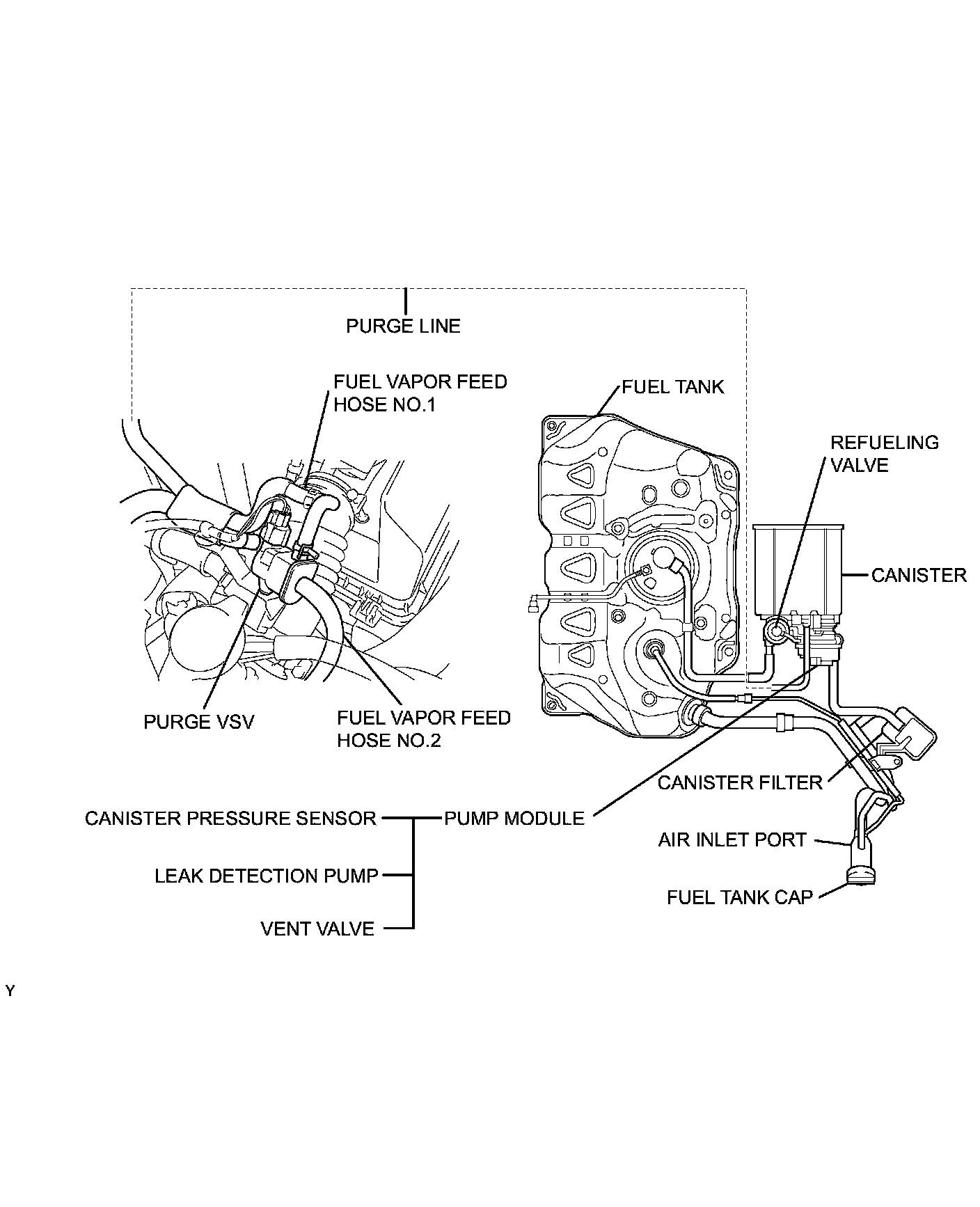

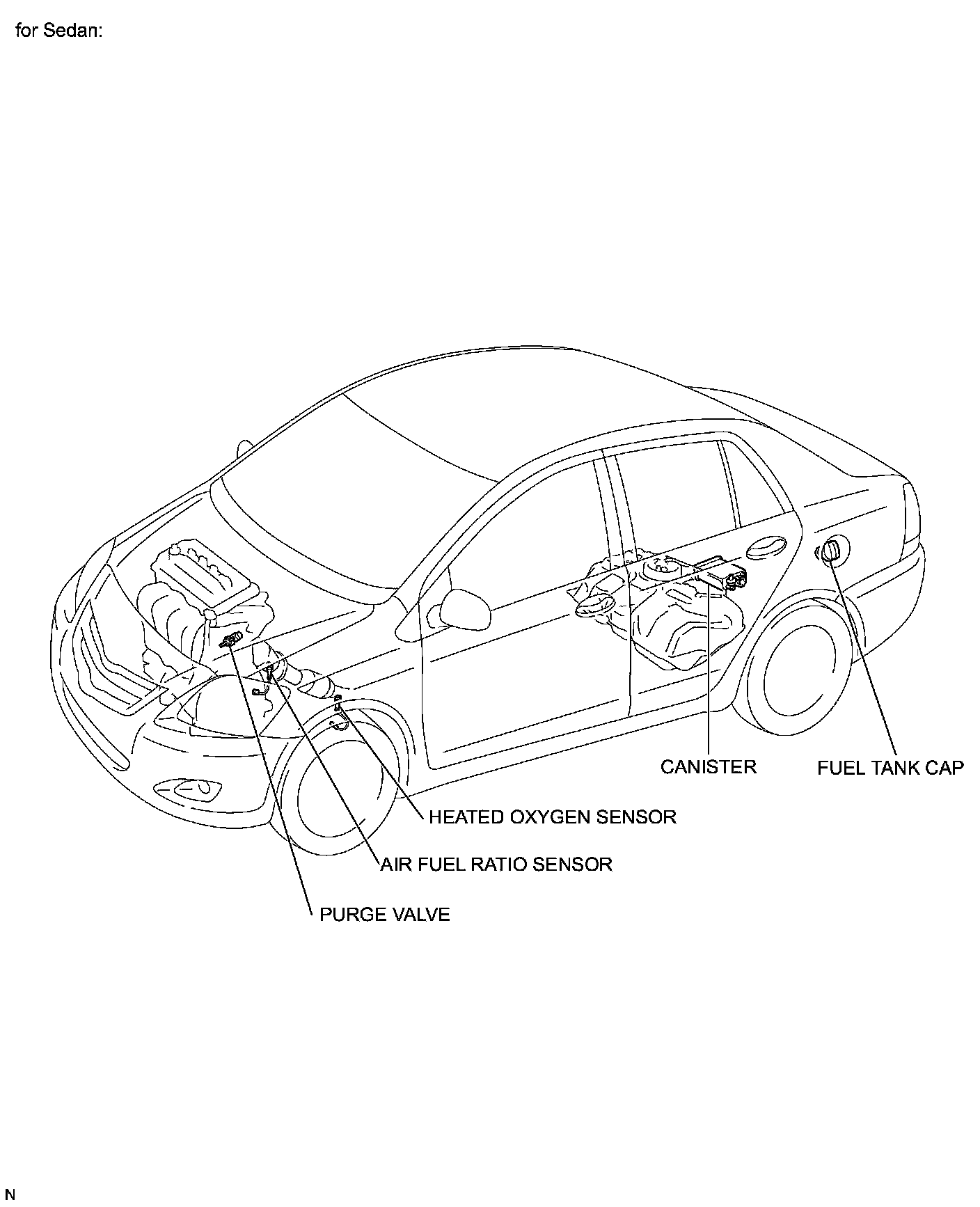

PARTS LOCATION

ILLUSTRATION
