1NZ-FE EMISSION CONTROL: PCV VALVE: INSTALLATION

INSTALLATION

1. INSTALL POSITIVE CRANKCASE VENTILATION VALVE (PCV VALVE)





(a) Install the positive crankcase ventilation valve (PCV valve).

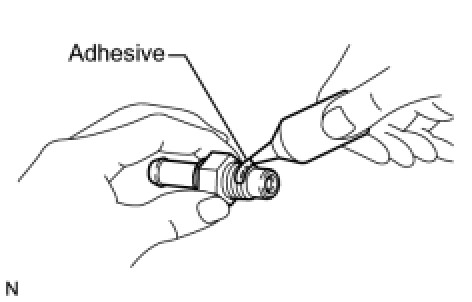

(1) Apply adhesive to the end 2 or 3 threads of the bolt.
Adhesive:
Toyota Genuine Adhesive 1324, Three Bond 1324 or the equivalent.




(2) Install the positive crankcase ventilation valve (PCV valve).
Torque: 27 Nm (275 kgf-cm, 20 ft-lbf)





2. CONNECT VENTILATION HOSE
3. INSTALL CYLINDER HEAD COVER NO. 2 Installation
