Removal

1NZ-FE ENGINE CONTROL SYSTEM: ACCELERATOR PEDAL: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

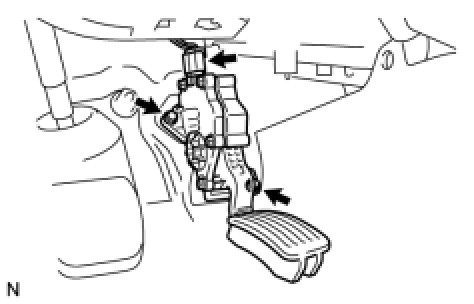

2. REMOVE ACCELERATOR PEDAL ASSEMBLY
(a) Disconnect the accelerator pedal connector.
(b) Remove the 2 bolts and the accelerator pedal.
NOTICE:
- Do not drop or strike the accelerator pedal.
- Do not disassemble the accelerator pedal.
