Accelerator Pedal: Testing and Inspection

1NZ-FE ENGINE CONTROL SYSTEM: ACCELERATOR PEDAL: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT ACCELERATOR PEDAL ASSEMBLY
(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch to ON.
(c) Turn the tester ON.
(d) Select the following menu items: Powertrain / Engine and ECT / Data List / Accelerator Position No. 1 and Accelerator Position No. 2.
(e) While the accelerator pedal is depressed or released, check that the values of accelerator position No. 1 and accelerator position No. 2 are within the specifications.

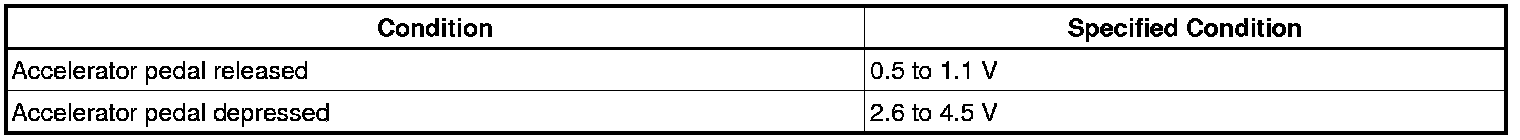

Accelerator Position No. 1 Standard Voltage:

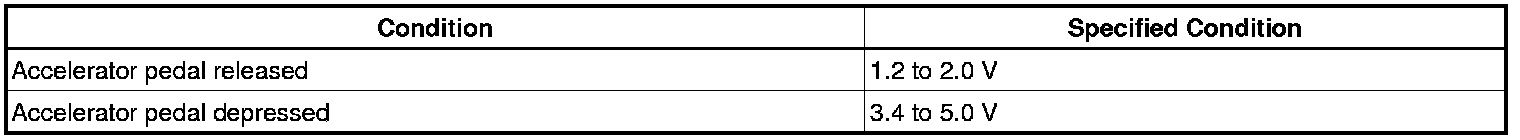

Accelerator Position No. 2 Standard Voltage:





HINT: If the results are not as specified, check the accelerator pedal, wire harness or ECM.
