Inspection

1NZ-FE ENGINE CONTROL SYSTEM: THROTTLE BODY: INSPECTION

INSPECTION

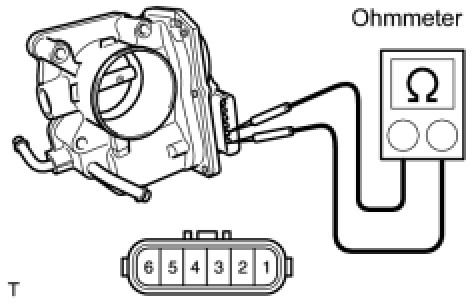

1. INSPECT THROTTLE WITH MOTOR BODY ASSEMBLY
(a) Check the resistance.
(1) Using an ohmmeter, measure the resistance between the terminals.
Standard resistance:






If the result is not as specified, replace the throttle with motor body assembly.
