Ignition System: Description and Operation
1NZ-FE IGNITION:
IGNITION SYSTEM

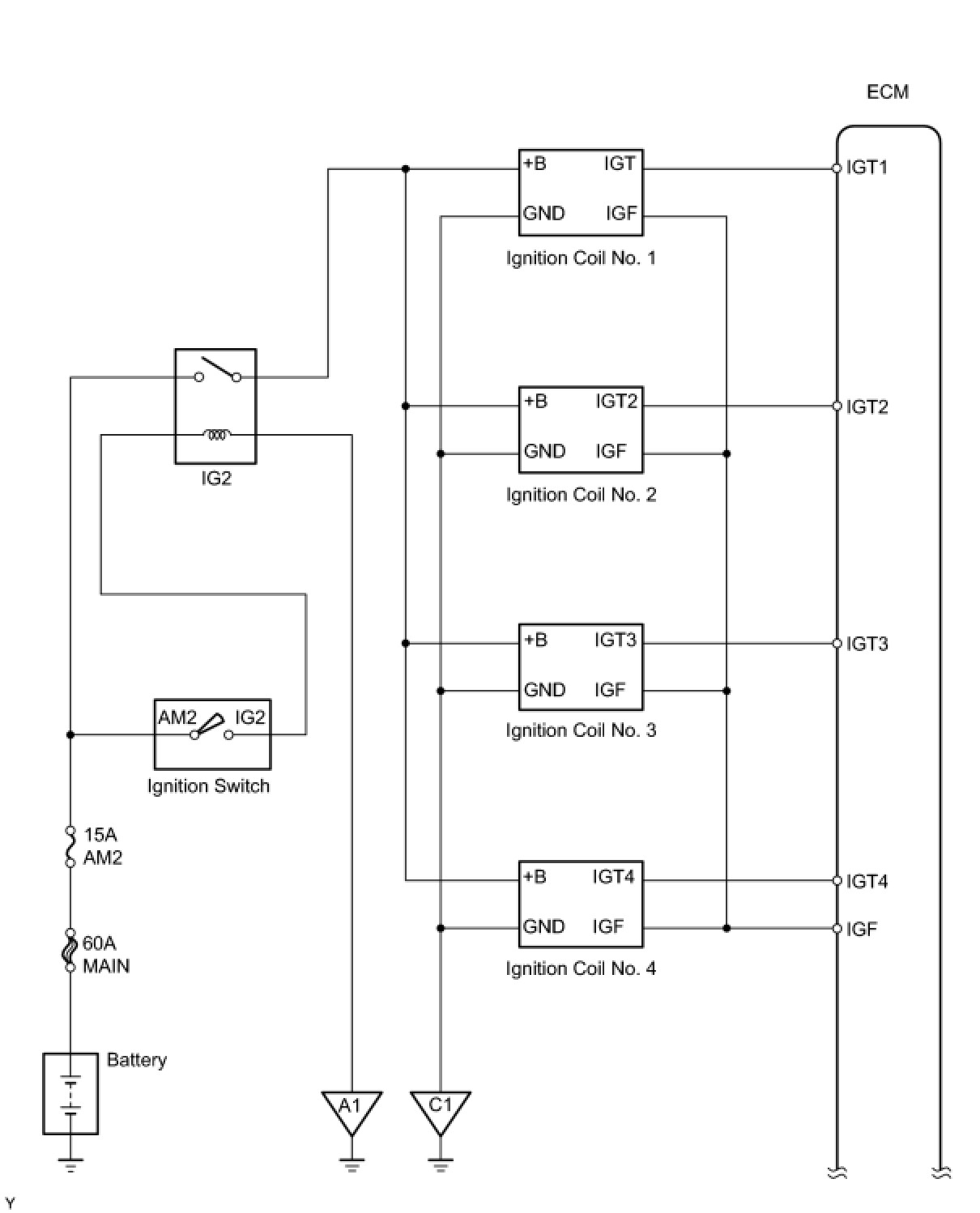

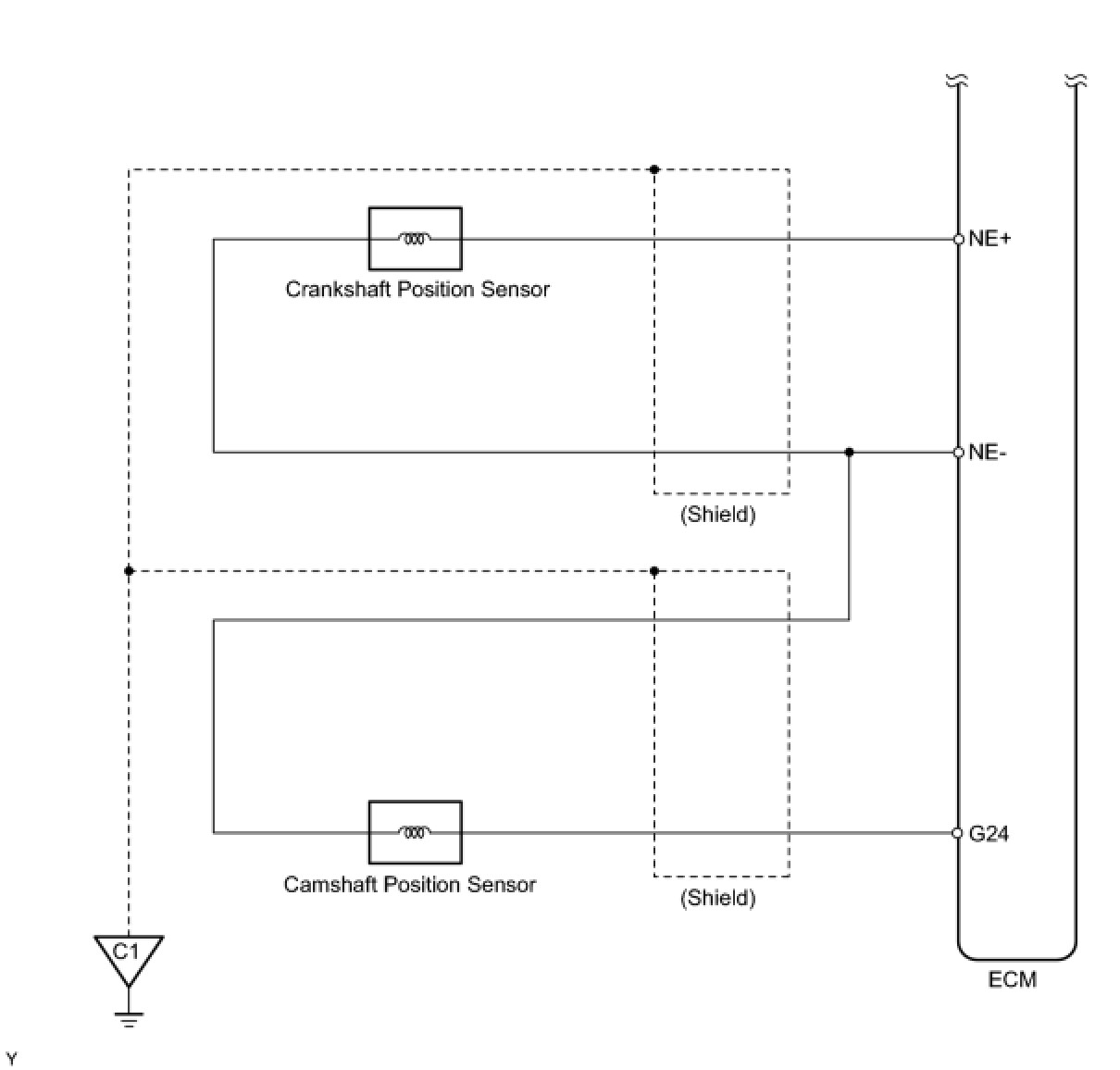

: SYSTEM DIAGRAM
SYSTEM DIAGRAM
