Installation

1NZ-FE IGNITION: IGNITION COIL: INSTALLATION

INSTALLATION

1. INSTALL IGNITION COIL NO. 1

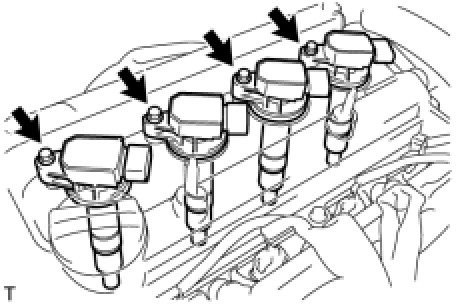

(a) Install the 4 ignition coils with the 4 bolts.
Torque: 9.0 Nm (92 kgf-cm, 80 in-lbf)

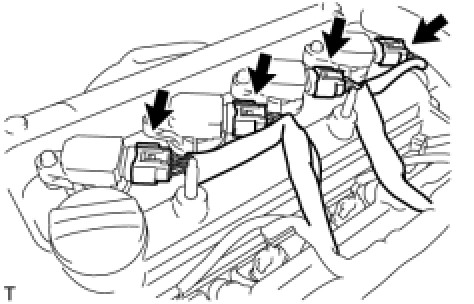

(b) Connect the 4 ignition coil connectors.





2. INSTALL CYLINDER HEAD COVER NO. 2

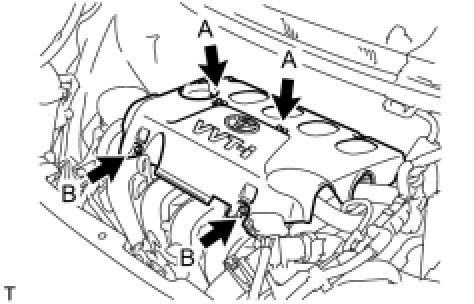

(a) Tighten the 2 A nuts, then the 2 B nuts.
Torque: 7.0 Nm (71 kgf-cm, 62 in-lbf)
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
