Removal

1NZ-FE IGNITION: IGNITION COIL: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL





2. REMOVE CYLINDER HEAD COVER NO. 2

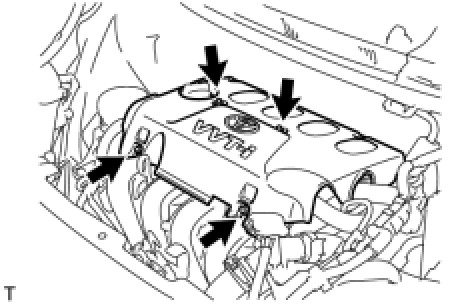

(a) Remove the 4 nuts and cylinder head cover No. 2.
3. REMOVE IGNITION COIL NO. 1





(a) Disconnect the 4 ignition coil connectors.





(b) Remove the 4 bolts and 4 ignition coils.
