Powertrain Management: Locations

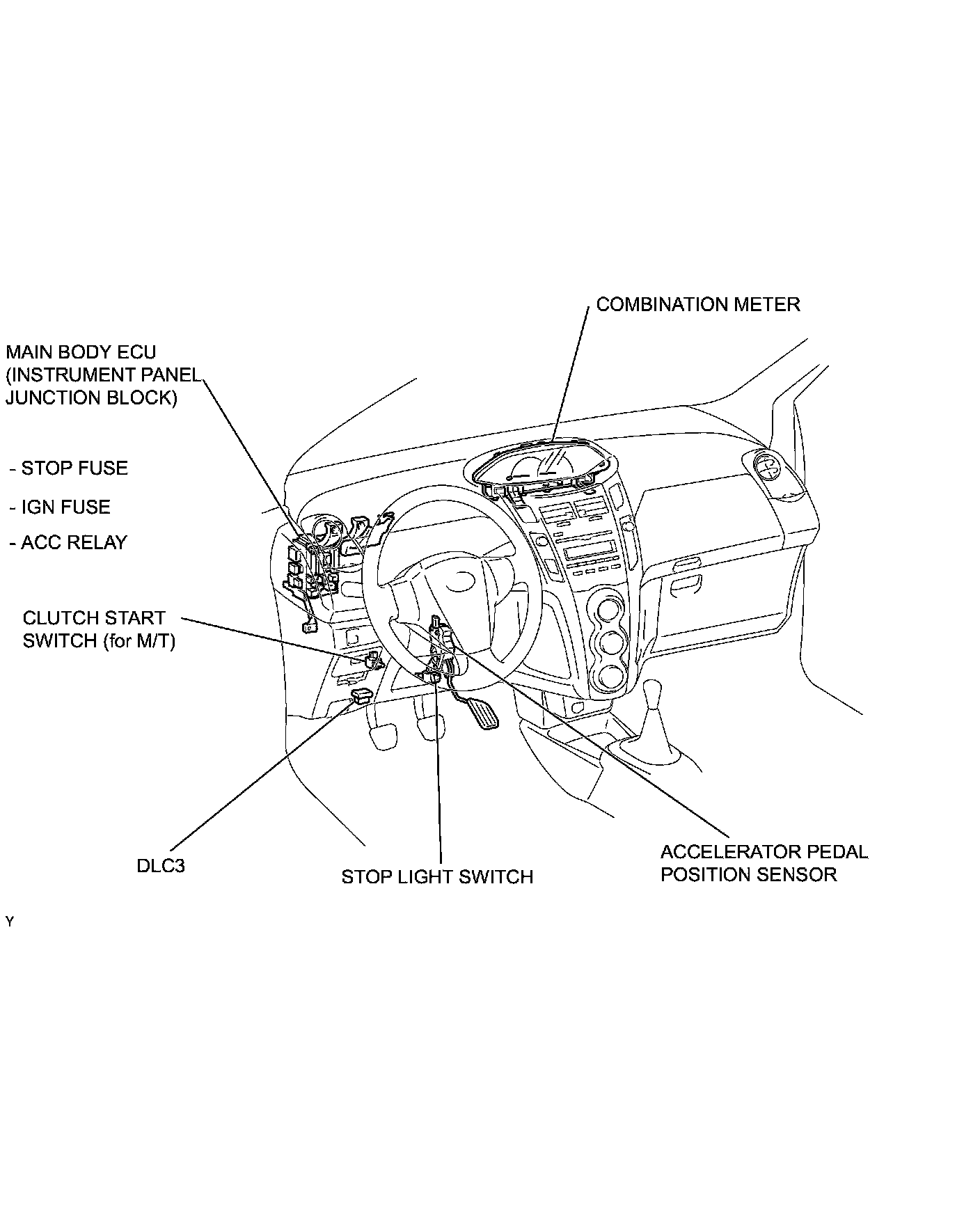

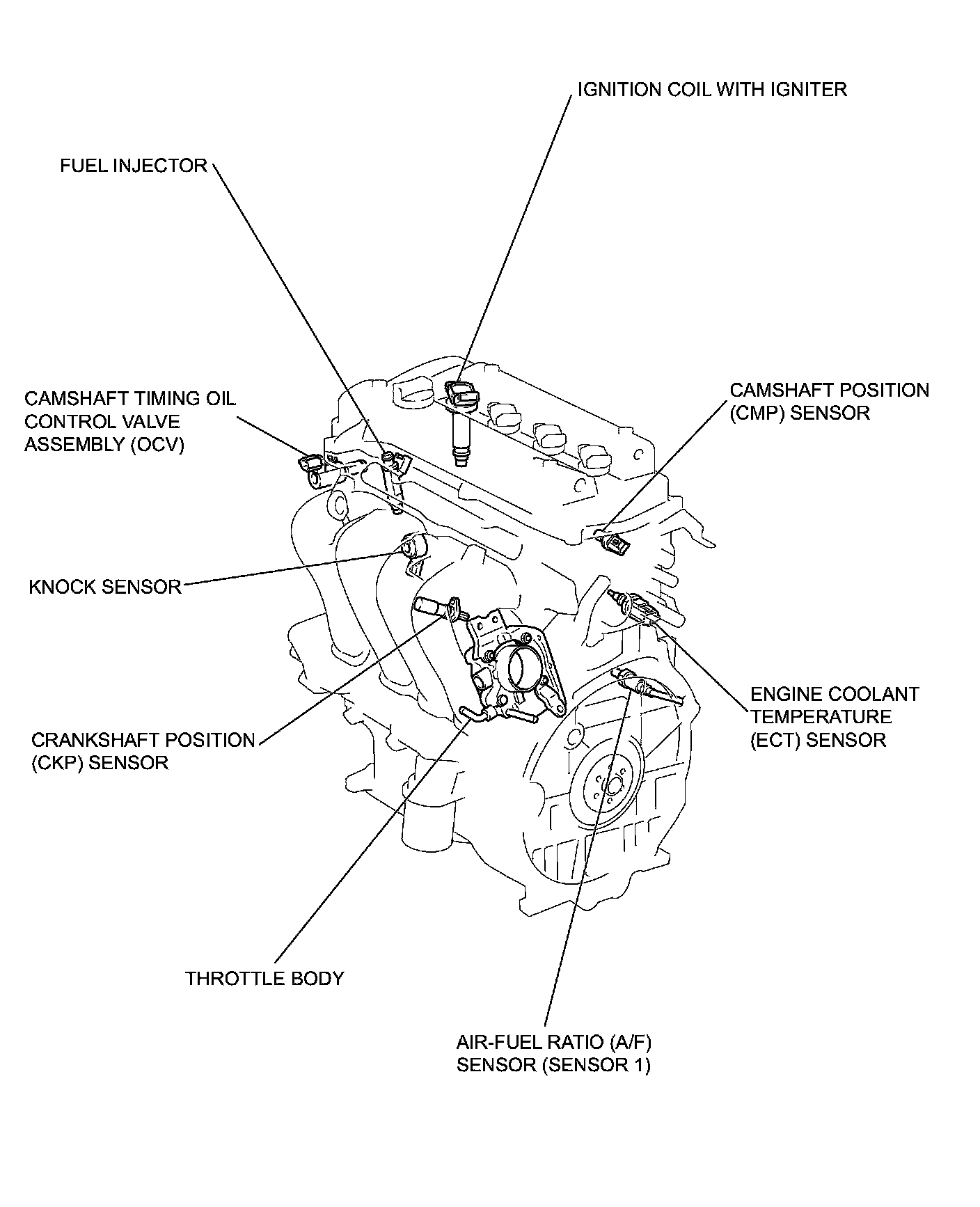

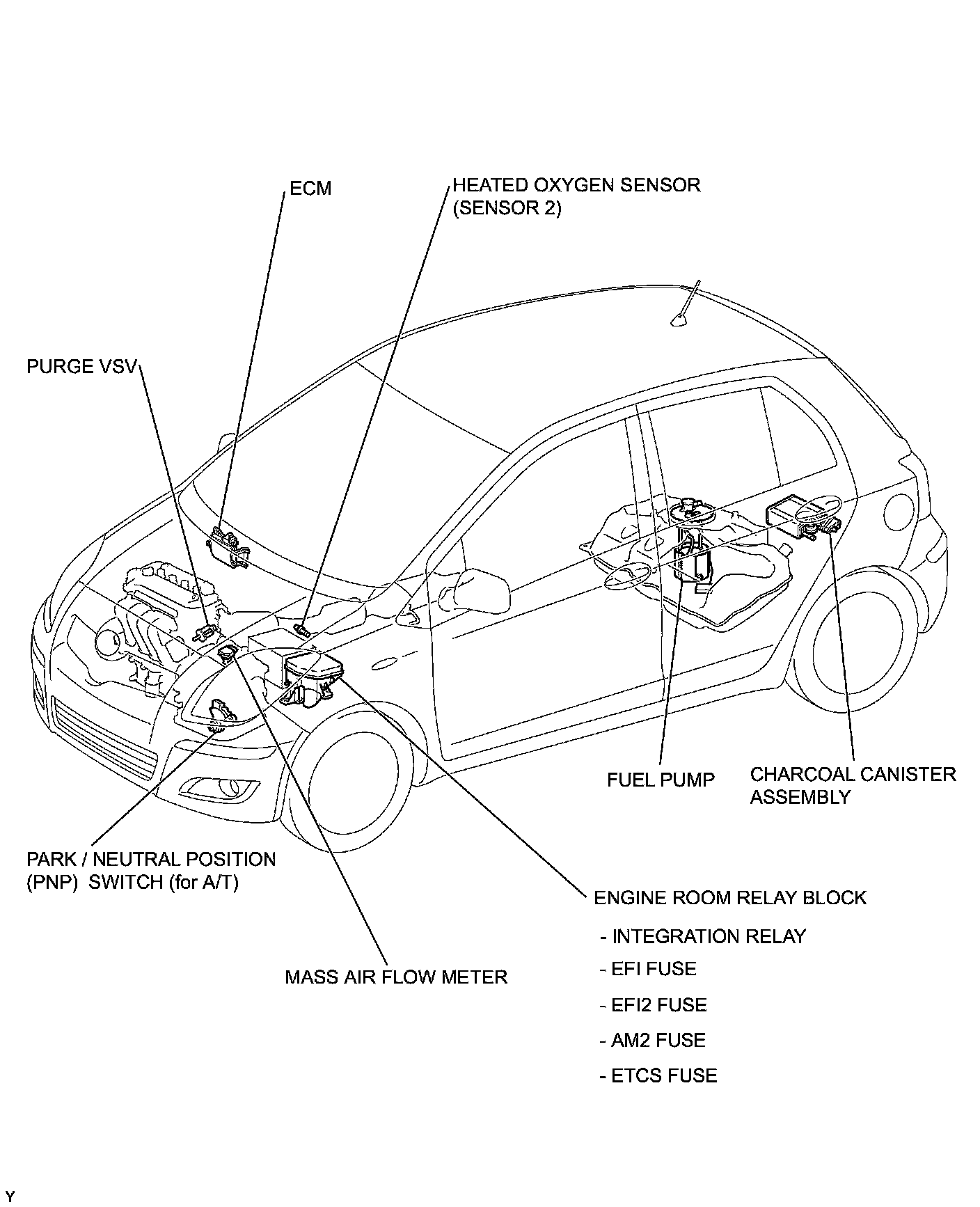

1NZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: PARTS LOCATION
PARTS LOCATION
ILLUSTRATION
