Pinout Values and Diagnostic Parameters

U340E AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: TERMINALS OF ECM

TERMINALS OF ECM

1. ECM

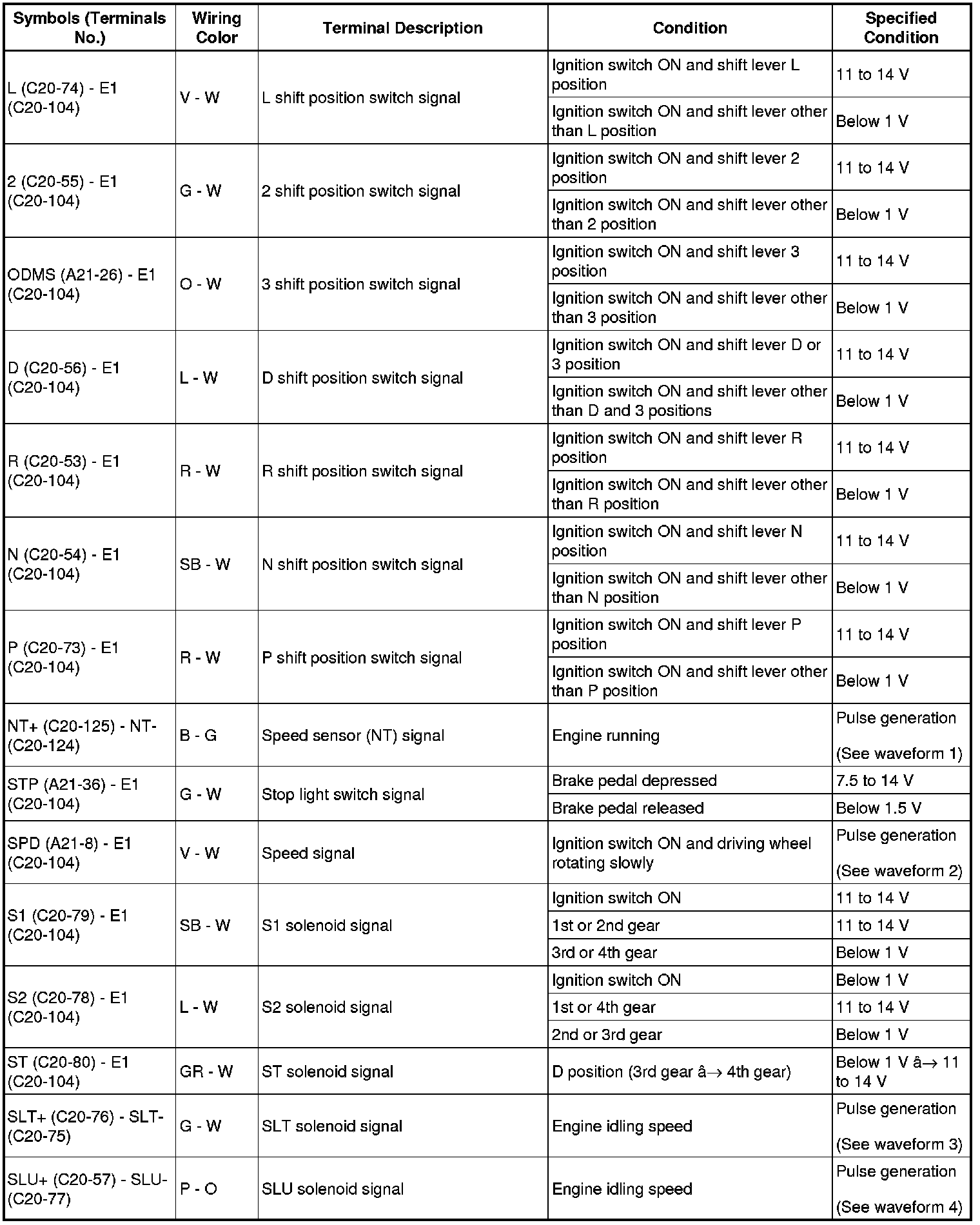

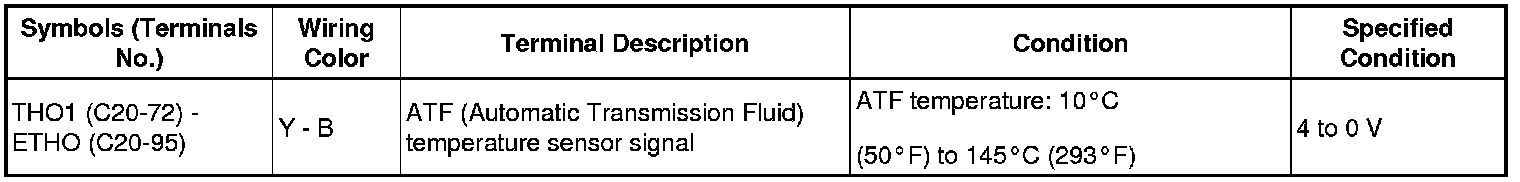

HINT: Each ECM terminal's standard voltage is shown in the table below.
In the table, first follow the information under "Condition". Look under "Symbols (Terminal No.)" for the terminals to be inspected. The standard voltage between the terminals is shown under "Specific Condition".

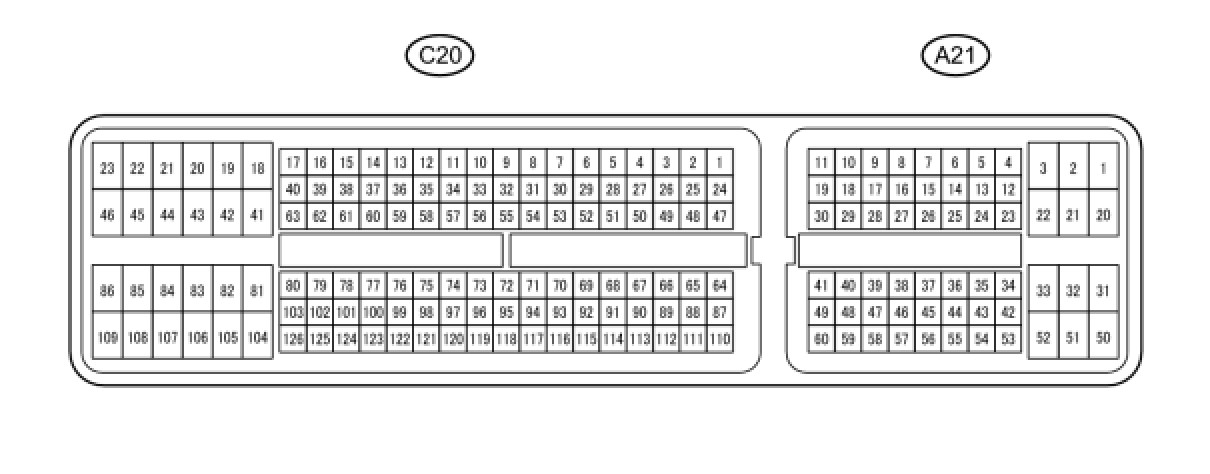

Use the illustration above as a reference for the ECM terminals.

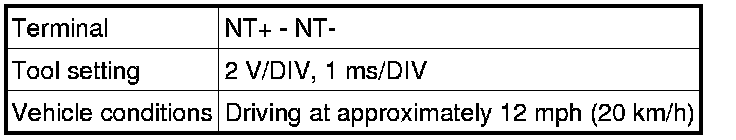

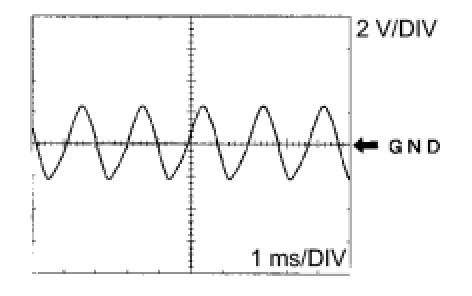

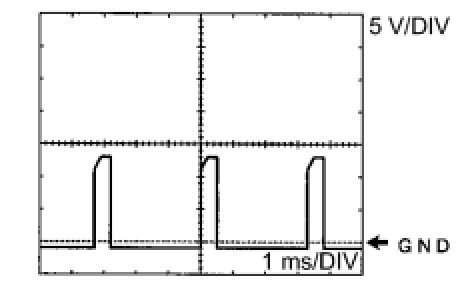

(a) Waveform 1

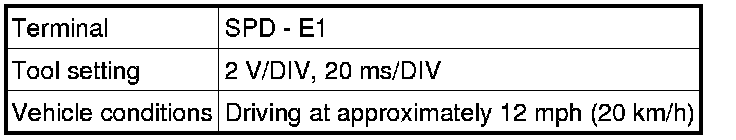

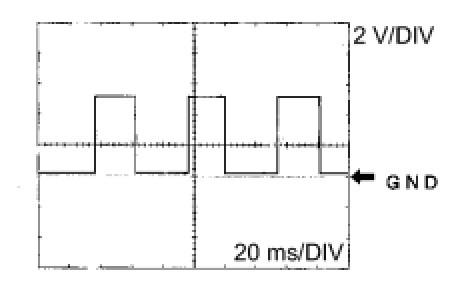

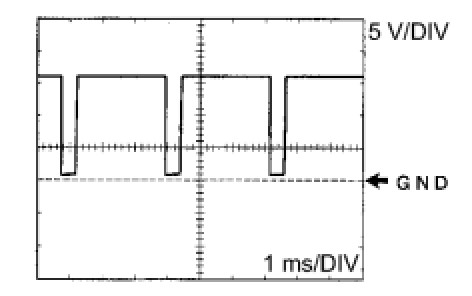

(b) Waveform 2

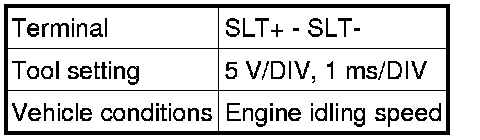

(c) Waveform 3

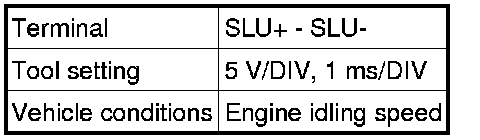

(d) Waveform 4
