Installation








AIR CONDITIONING: HEATER BLOWER MOTOR RELAY: INSTALLATION

INSTALLATION





1. INSTALL HEATER BLOWER MOTOR RELAY

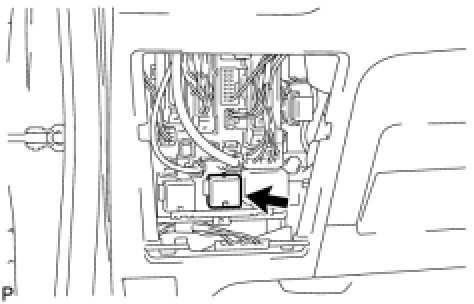

(a) Install the heater blower motor relay.
2. INSTALL INSTRUMENT PANEL BOX (for Hatchback) Installation
3. INSTALL INSTRUMENT PANEL BOX (for Sedan) Installation
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
