Removal

HORN: HORN RELAY (for Sedan): REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE NO. 1 RELAY BLOCK COVER

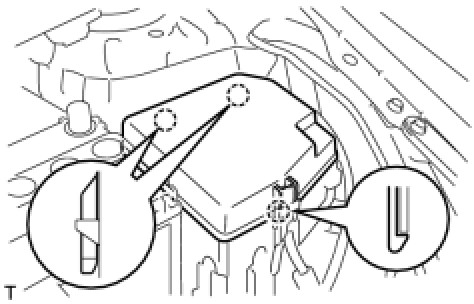

(a) Disengage the 3 claws and remove the No. 1 relay block cover.
3. REMOVE INTEGRATION RELAY (Built in Horn Relay)

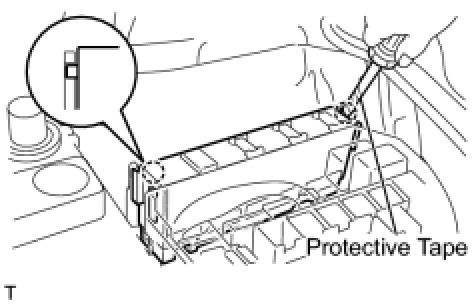

(a) Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and remove the integration relay.

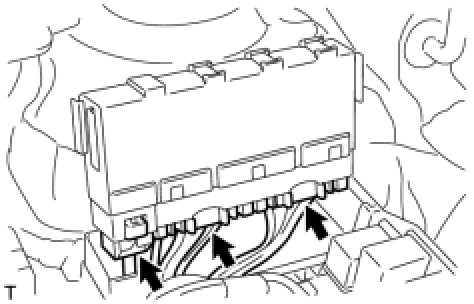

(b) Disconnect the 3 connectors.
