Removal

SUPPLEMENTAL RESTRAINT SYSTEM: CURTAIN SHIELD AIRBAG ASSEMBLY (for 3 Door): REMOVAL

REMOVAL
CAUTION: Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing Service Precautions.
NOTE: Always use "Torx" socket wrench E10 when removing the rear seat.
HINT: The procedure described below is for the RH side. Use the same procedure for both the RH and LH sides, unless otherwise specified.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY Removal
3. REMOVE DECK BOARD SUB-ASSEMBLY Removal
4. REMOVE DECK FLOOR BOX RH Removal
5. REMOVE DECK FLOOR BOX LH Removal
6. REMOVE NO. 1 REAR SEAT LEG COVER (for 60/40 Split Seat Type) Removal
7. REMOVE NO. 2 REAR SEAT LEG COVER (for 60/40 Split Seat Type) Removal
8. REMOVE REAR SEAT ASSEMBLY RH (for 60/40 Split Seat Type) Removal
9. REMOVE REAR SEAT ASSEMBLY LH (for 60/40 Split Seat Type) Removal
10. REMOVE REAR SEAT CUSHION COVER PAD SUB-ASSEMBLY (for Hold Down Seat Type) Removal
11. REMOVE REAR SEATBACK ASSEMBLY (for Hold Down Seat Type) Removal
12. REMOVE FRONT DOOR SCUFF PLATE RH Removal
13. REMOVE FRONT DOOR SCUFF PLATE LH Removal
14. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY RH Removal
15. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY LH Removal
16. REMOVE COWL SIDE TRIM BOARD RH Removal
17. REMOVE COWL SIDE TRIM BOARD LH Removal
18. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH Removal
19. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH Removal
20. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY RH Removal
21. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY LH Removal
22. REMOVE REAR DECK TRIM COVER Removal
23. REMOVE REAR SEAT OUTER BELT ASSEMBLY RH Removal
24. REMOVE REAR SEAT OUTER BELT ASSEMBLY LH Removal
25. REMOVE DECK SIDE TRIM PANEL ASSEMBLY RH Removal
26. REMOVE DECK SIDE TRIM PANEL ASSEMBLY LH Removal
27. REMOVE SEAT BELT ANCHOR COVER CAP Removal
28. REMOVE FRONT SEAT OUTER BELT ASSEMBLY RH Removal
29. REMOVE FRONT SEAT OUTER BELT ASSEMBLY LH Removal
30. REMOVE CENTER PILLAR UPPER GARNISH RH Removal
31. REMOVE CENTER PILLAR UPPER GARNISH LH Removal
32. REMOVE REAR CENTER SEAT OUTER BELT ASSEMBLY Removal
33. REMOVE ROOF SIDE INNER GARNISH RH Removal
34. REMOVE ROOF SIDE INNER GARNISH LH Removal
35. REMOVE REAR ROOF SIDE RAIL GARNISH RH Removal
36. REMOVE REAR ROOF SIDE RAIL GARNISH LH Removal
37. REMOVE SEAT BELT ANCHOR COVER Removal
38. REMOVE ASSIST GRIP COVER Removal
39. REMOVE ASSIST GRIP SUB-ASSEMBLY Removal
40. REMOVE VISOR ASSEMBLY RH Removal
41. REMOVE VISOR ASSEMBLY LH Removal
42. REMOVE VISOR HOLDER RH Removal
43. REMOVE VISOR HOLDER LH Removal
44. REMOVE ROOM LIGHT ASSEMBLY Removal
45. REMOVE MAP LIGHT ASSEMBLY Removal
46. REMOVE FRONT PILLAR GARNISH RH Removal
47. REMOVE FRONT PILLAR GARNISH LH Removal
48. REMOVE INSTRUMENT PANEL FINISH PANEL END LH Removal
49. REMOVE INSTRUMENT PANEL FINISH PANEL END RH Removal
50. REMOVE INSTRUMENT CLUSTER FINISH NO.1 PANEL Removal
51. REMOVE COMBINATION METER ASSEMBLY Removal
52. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY Removal
53. REMOVE NO. 1 SWITCH HOLE BASE Removal
54. REMOVE UPPER INSTRUMENT PANEL SUB-ASSEMBLY Removal
55. REMOVE INSTRUMENT PANEL BOX Removal
56. REMOVE ROOF HEADLINING ASSEMBLY Removal
57. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY RH

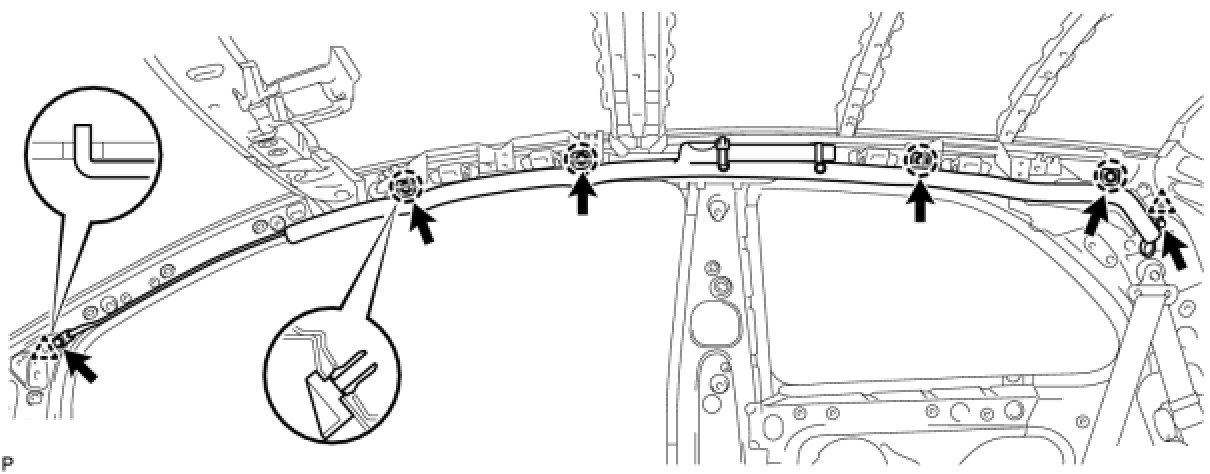

(a) Using a thin-bladed screwdriver, release the locking button.
(b) Using a thin-bladed screwdriver, detach the airbag connector.
(c) Loosen the 2 bolts.
(d) Disengage the 2 hooks.
(e) Remove the 2 bolts and 4 screws.
(f) Using a screwdriver, disengage the 4 clips and remove the curtain airbag.









58. REMOVE CURTAIN SHIELD AIRBAG BRACKET RH

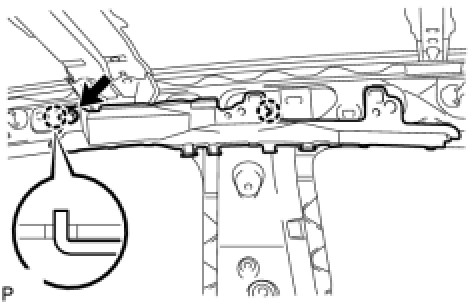

(a) Remove the bolt, disengage the 2 hooks and remove the curtain shield airbag bracket.





59. REMOVE ROOF SIDE RAIL BRACKET RH
(a) Remove the wire harness clamp.

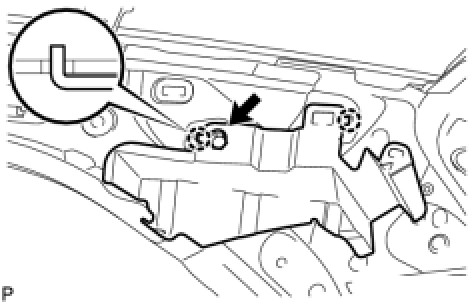

(b) Remove the bolt, disengage the 2 hooks and remove the roof side rail bracket.
