Installation

SUPPLEMENTAL RESTRAINT SYSTEM: CURTAIN SHIELD AIRBAG ASSEMBLY (for 5 Door): INSTALLATION

INSTALLATION
CAUTION: Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing Service Precautions.
NOTE: Always use "Torx" socket wrench E10 when installing the rear seat.
HINT: The procedure described below is for the RH side. Use the same procedure for both the RH and LH sides, unless otherwise specified.

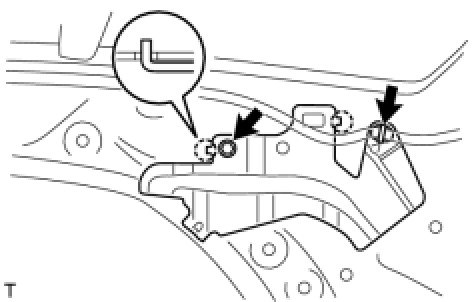

1. INSTALL ROOF SIDE RAIL BRACKET RH
(a) Insert the 2 hooks into the body holes and install the roof side rail bracket.
Torque: 9.8 Nm (100 kgf-cm, 7 ft-lbf)
(b) Install the wire harness clamp.

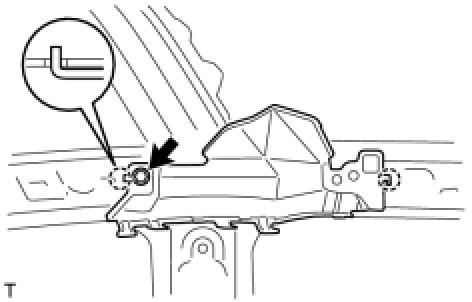

2. INSTALL CURTAIN SHIELD AIRBAG BRACKET RH
(a) Insert the 2 hooks into the body holes and install the curtain shield back bracket.
Torque: 9.8 Nm (100 kgf-cm, 7 ft-lbf)

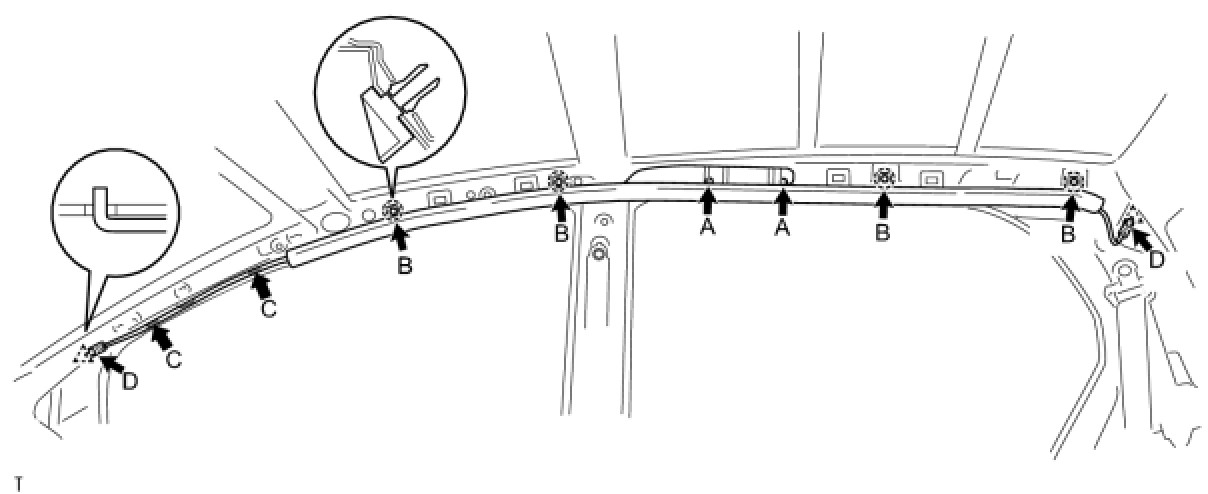

3. INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY RH
(a) Tighten the 2 bolts A.
Torque: 14 Nm (145 kgf-cm, 10 ft-lbf)
(b) Tighten the 4 screws B.





(c) Install the front strap.
NOTE: Attach double sided tape to the indicated area, with the strap pulled downward. When installing the strap, make sure that the front pillar garnish installation holes are not hidden by the strap of the curtain shield airbag.

(d) Tighten the 2 bolts D.
Torque: 9.8 Nm (100 kgf-cm, 7 ft-lbf)

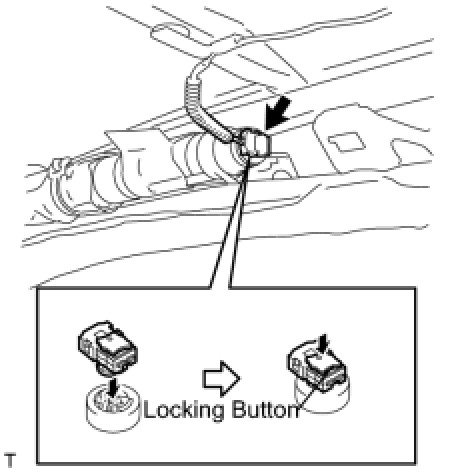

(e) Connect the airbag connector.
NOTE: Securely lock the locking button.

4. INSTALL ROOF HEADLINING ASSEMBLY Installation
5. INSTALL INSTRUMENT PANEL BOX Installation
6. INSTALL INSTRUMENT UPPER PANEL SUB-ASSEMBLY Installation
7. INSTALL NO. 1 SWITCH HOLE BASE Installation
8. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation
9. INSTALL COMBINATION METER ASSEMBLY Installation
10. INSTALL INSTRUMENT CLUSTER FINISH NO.1 PANEL Installation
11. INSTALL INSTRUMENT PANEL FINISH PANEL END RH Installation
12. INSTALL INSTRUMENT PANEL FINISH PANEL END LH Installation
13. INSTALL FRONT PILLAR GARNISH RH Installation
14. INSTALL FRONT PILLAR GARNISH LH Installation
15. INSTALL MAP LIGHT ASSEMBLY Installation
16. INSTALL ROOM LIGHT ASSEMBLY Installation
17. INSTALL VISOR HOLDER RH Installation
18. INSTALL VISOR HOLDER LH Installation
19. INSTALL VISOR ASSEMBLY RH Installation
20. INSTALL VISOR ASSEMBLY LH Installation
21. INSTALL ASSIST GRIP SUB-ASSEMBLY Installation
22. INSTALL SEAT BELT ANCHOR COVER Installation
23. INSTALL CENTER PILLAR UPPER GARNISH RH Installation
24. INSTALL CENTER PILLAR UPPER GARNISH LH Installation
25. INSTALL CENTER PILLAR LOWER GARNISH RH Installation
26. INSTALL CENTER PILLAR LOWER GARNISH LH Installation
27. INSTALL FRONT SEAT OUTER BELT ASSEMBLY RH Installation
28. INSTALL FRONT SEAT OUTER BELT ASSEMBLY LH Installation
29. INSTALL SEAT BELT ANCHOR COVER CAP Installation
30. INSTALL ROOF SIDE INNER GARNISH RH Installation
31. INSTALL ROOF SIDE INNER GARNISH LH Installation
32. INSTALL REAR CENTER SEAT OUTER BELT ASSEMBLY Installation
33. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH Installation
34. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH Installation
35. INSTALL REAR SEAT OUTER BELT ASSEMBLY RH Installation
36. INSTALL REAR SEAT OUTER BELT ASSEMBLY LH Installation
37. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH Installation
38. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH Installation
39. INSTALL REAR DOOR SCUFF PLATE RH Installation
40. INSTALL REAR DOOR SCUFF PLATE LH Installation
41. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH Installation
42. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH Installation
43. INSTALL COWL SIDE TRIM BOARD RH Installation
44. INSTALL COWL SIDE TRIM BOARD LH Installation
45. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY RH Installation
46. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY LH Installation
47. INSTALL FRONT DOOR SCUFF PLATE RH Installation
48. INSTALL FRONT DOOR SCUFF PLATE LH Installation
49. INSTALL REAR DECK TRIM COVER Installation
50. INSTALL REAR SEAT ASSEMBLY LH (for 60/40 Split Seat Type) Installation
51. INSTALL REAR SEAT ASSEMBLY RH (for 60/40 Split Seat Type) Installation
52. INSTALL NO. 2 REAR SEAT LEG COVER (for 60/40 Split Seat Type) Installation
53. INSTALL NO. 1 REAR SEAT LEG COVER (for 60/40 Split Seat Type) Installation
54. INSTALL REAR SEATBACK ASSEMBLY (for Bench Seat Type) Installation
55. INSTALL REAR SEAT CUSHION COVER PAD SUB-ASSEMBLY (for Bench Seat Type) Installation
56. INSTALL DECK FLOOR BOX RH Installation
57. INSTALL DECK FLOOR BOX LH Installation
58. INSTALL DECK BOARD SUB-ASSEMBLY Installation
59. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY Installation
60. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
61. INSPECT SRS WARNING LIGHT
Diagnosis System
