SUPPLEMENTAL RESTRAINT SYSTEM: CURTAIN SHIELD AIRBAG ASSEMBLY (for 5 Door): REMOVAL

REMOVAL
CAUTION: Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing Service Precautions.
NOTE: Always use "Torx" socket wrench E10 when removing the rear seat.
HINT: The procedure described below is for the LH side. Use the same procedure for both the RH and LH sides, unless otherwise specified.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY Removal
3. REMOVE DECK BOARD SUB-ASSEMBLY Removal
4. REMOVE DECK FLOOR BOX RH Removal
5. REMOVE DECK FLOOR BOX LH Removal
6. REMOVE NO. 1 REAR SEAT LEG COVER (for 60/40 Split Seat Type) Removal
7. REMOVE NO. 2 REAR SEAT LEG COVER (for 60/40 Split Seat Type) Installation
8. REMOVE REAR SEAT ASSEMBLY RH (for 60/40 Split Seat Type) Removal
9. REMOVE REAR SEAT ASSEMBLY LH (for 60/40 Split Seat Type) Removal
10. REMOVE REAR SEAT CUSHION COVER PAD SUB-ASSEMBLY (for Bench Seat Type) Removal
11. REMOVE REAR SEATBACK ASSEMBLY (for Bench Seat Type) Removal
12. REMOVE REAR DECK TRIM COVER Removal
13. REMOVE FRONT DOOR SCUFF PLATE RH Removal
14. REMOVE FRONT DOOR SCUFF PLATE LH
HINT: Use the same procedure as for the RH side.

15. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY RH Removal
16. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY LH Removal
17. REMOVE COWL SIDE TRIM BOARD RH Removal
18. REMOVE COWL SIDE TRIM BOARD LH Removal
19. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH Removal
20. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH Removal
21. REMOVE REAR DOOR SCUFF PLATE RH Removal
22. REMOVE REAR DOOR SCUFF PLATE LH
HINT: Use the same procedure as for the RH side.

23. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH Removal
24. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
HINT: Use the same procedure as for the RH side.

25. REMOVE REAR SEAT OUTER BELT ASSEMBLY RH Removal
26. REMOVE REAR SEAT OUTER BELT ASSEMBLY LH
HINT: Use the same procedure as for the RH side.

27. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH Removal
28. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH Removal
29. REMOVE REAR CENTER SEAT OUTER BELT ASSEMBLY Removal
30. REMOVE ROOF SIDE INNER GARNISH RH Removal
31. REMOVE ROOF SIDE INNER GARNISH LH Removal
32. REMOVE SEAT BELT ANCHOR COVER CAP Removal
33. INSTALL FRONT SEAT OUTER BELT ASSEMBLY RH Removal
34. REMOVE FRONT SEAT OUTER BELT ASSEMBLY LH Removal
35. REMOVE CENTER PILLAR LOWER GARNISH RH Removal
36. REMOVE CENTER PILLAR LOWER GARNISH LH
HINT: Use the same procedure as for the RH side.

37. REMOVE CENTER PILLAR UPPER GARNISH RH Removal
38. REMOVE CENTER PILLAR UPPER GARNISH LH
HINT: Use the same procedure as for the RH side.

39. REMOVE SEAT BELT ANCHOR COVER Removal
40. REMOVE ASSIST GRIP SUB-ASSEMBLY Removal
41. REMOVE VISOR ASSEMBLY RH Removal
42. REMOVE VISOR ASSEMBLY LH
HINT: Use the same procedure as for the RH side.

43. REMOVE VISOR HOLDER RH Removal
44. REMOVE VISOR HOLDER LH
HINT: Use the same procedure as for the RH side.

45. REMOVE ROOM LIGHT ASSEMBLY Removal
46. REMOVE MAP LIGHT ASSEMBLY Removal
47. REMOVE FRONT PILLAR GARNISH RH Removal
48. REMOVE FRONT PILLAR GARNISH LH Removal
49. REMOVE INSTRUMENT PANEL FINISH PANEL END LH Removal
50. REMOVE INSTRUMENT PANEL FINISH PANEL END RH Removal
51. REMOVE INSTRUMENT CLUSTER FINISH NO.1 PANEL Removal
52. REMOVE COMBINATION METER ASSEMBLY Removal
53. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY Removal
54. REMOVE NO. 1 SWITCH HOLE BASE Removal
55. REMOVE INSTRUMENT UPPER PANEL SUB-ASSEMBLY Removal
56. REMOVE INSTRUMENT PANEL BOX Removal
57. REMOVE ROOF HEADLINING ASSEMBLY Removal
58. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY RH

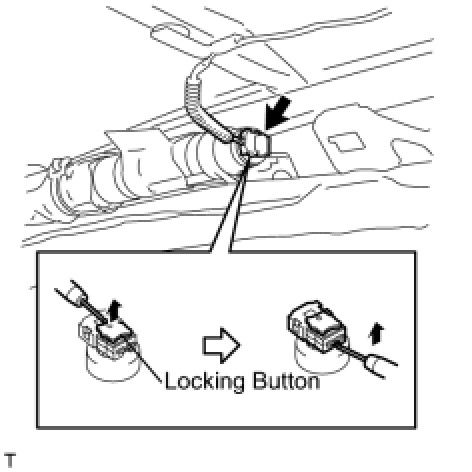

(a) Using a thin-bladed screwdriver, release the locking button.
(b) Using a thin-bladed screwdriver, detach the airbag connector.

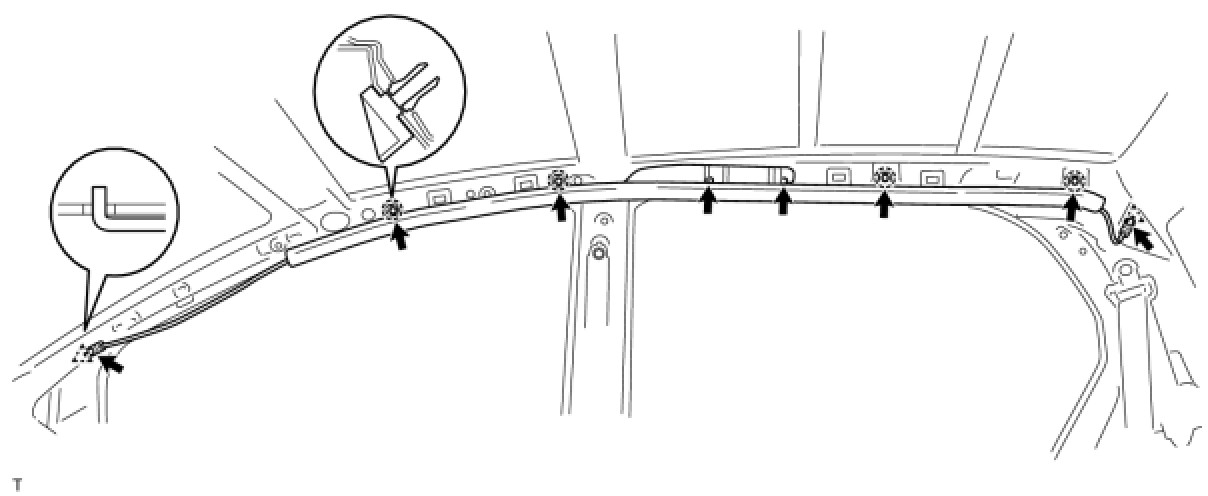

(c) Loosen the 2 bolts.
(d) Disengage the 2 hooks.
(e) Remove the 2 bolts and 4 screws.









59. REMOVE CURTAIN SHIELD AIRBAG BRACKET RH
(a) Using a screwdriver, disengage the 2 hooks and remove the curtain shield airbag bracket.





60. REMOVE ROOF SIDE RAIL BRACKET RH
(a) Remove the wire harness clamp.
(b) Remove the bolt, disengage the 2 hooks and remove the roof side rail bracket.
