SUPPLEMENTAL RESTRAINT SYSTEM: CURTAIN SHIELD AIRBAG ASSEMBLY (for Sedan): INSTALLATION

INSTALLATION
CAUTION: Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing Service Precautions.
HINT: The procedure described below is for the RH side. Use the same procedure for both the RH and LH sides, unless otherwise specified.

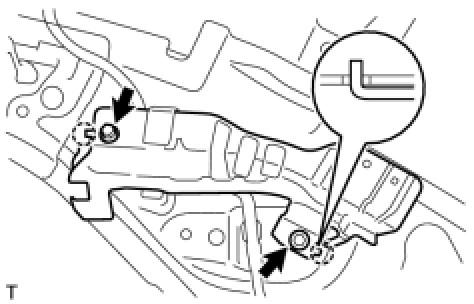

1. INSTALL ROOF SIDE RAIL BRACKET RH





(a) Insert the 2 hooks into the body holes and install the roof side rail bracket and tighten 2 the bolts.
Torque: 14 Nm (143 kgf-cm, 10 ft-lbf)

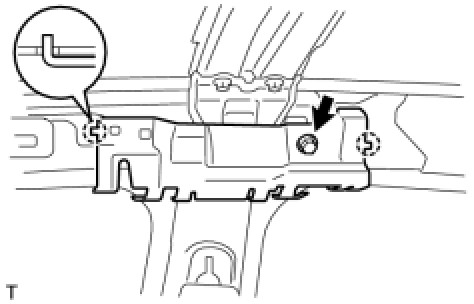

2. INSTALL CURTAIN SHIELD AIRBAG BRACKET RH





(a) Insert the 2 hooks into the body holes and install the curtain shield back bracket and tighten 1 the bolt.
Torque: 14 Nm (143 kgf-cm, 10 ft-lbf)

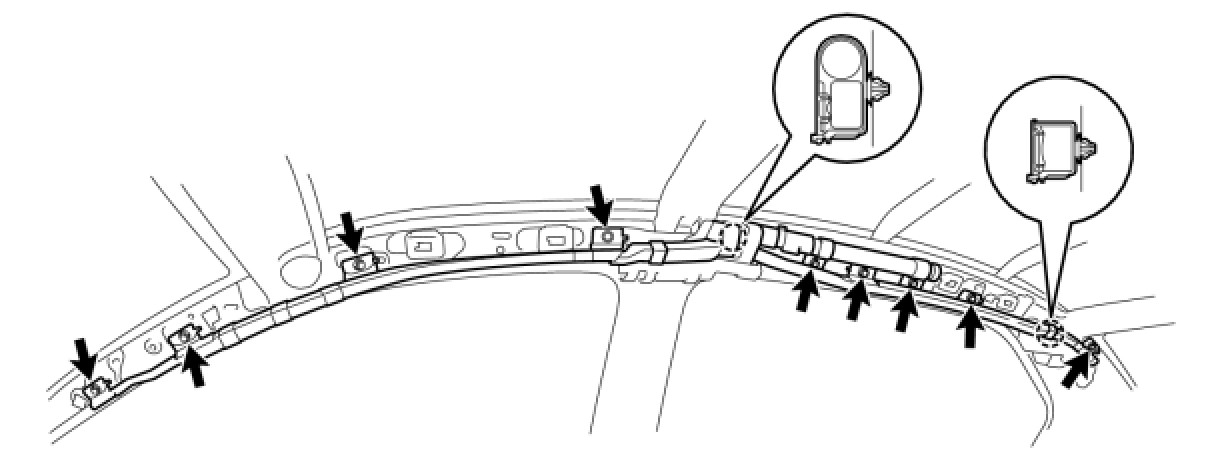

3. INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY RH
(a) Insert the 3 hooks into the body holes and install the curtain shield back bracket and tighten 9 the bolts.
Torque: 14 Nm (143 kgf-cm, 10 ft-lbf)

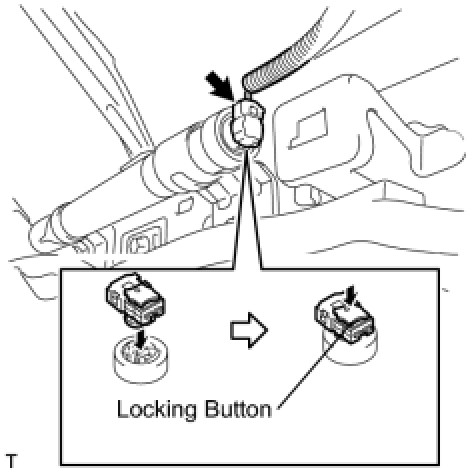

(b) Connect the airbag connector.
NOTE: Lock the locking button securely.

4. INSTALL ROOF HEADLINING ASSEMBLY Installation
5. INSTALL MAP LIGHT ASSEMBLY Installation
6. INSTALL ROOM LIGHT ASSEMBLY Installation
7. INSTALL VISOR HOLDER RH Installation
8. INSTALL VISOR HOLDER LH Installation
9. INSTALL VISOR ASSEMBLY RH Installation
10. INSTALL VISOR ASSEMBLY LH Installation
11. INSTALL ASSIST GRIP COVER Installation
12. INSTALL INSTRUMENT PANEL BOX Installation
13. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY Installation
14. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation
15. INSTALL COMBINATION METER ASSEMBLY Installation
16. INSTALL INSTRUMENT CLUSTER FINISH NO.1 PANEL Installation
17. INSTALL INSTRUMENT PANEL FINISH PANEL END RH Installation
18. INSTALL INSTRUMENT PANEL FINISH PANEL END LH Installation
19. INSTALL REAR CONSOLE BOX ASSEMBLY Installation
20. INSTALL REAR CONSOLE BOX CARPET Installation
21. INSTALL REAR CONSOLE BOX UPPER REAR PANEL SUB-ASSEMBLY Installation
22. INSTALL REAR CONSOLE BOX UPPER FRONT PANEL SUB-ASSEMBLY Installation
23. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) Installation
24. INSTALL INSTRUMENT PANEL LOWER CENTER FINISH PANEL Installation
25. INSTALL FRONT PILLAR GARNISH RH Installation
26. INSTALL FRONT PILLAR GARNISH LH Installation
27. INSTALL CENTER PILLAR UPPER GARNISH RH Installation
28. INSTALL CENTER PILLAR UPPER GARNISH LH Installation
29. INSTALL FRONT SEAT OUTER BELT ASSEMBLY RH Installation
30. INSTALL FRONT SEAT OUTER BELT ASSEMBLY LH Installation
31. INSTALL SEAT BELT ANCHOR COVER CAP Installation
32. INSTALL CENTER PILLAR LOWER GARNISH RH Installation
33. INSTALL CENTER PILLAR LOWER GARNISH LH Installation
34. INSTALL ROOF SIDE INNER GARNISH RH Installation
35. INSTALL ROOF SIDE INNER GARNISH LH Installation
36. INSTALL REAR SEAT SIDE COVER RH Installation
37. INSTALL REAR SEAT SIDE COVER LH Installation
38. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH Installation
39. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH Installation
40. INSTALL REAR DOOR SCUFF PLATE RH Installation
41. INSTALL REAR DOOR SCUFF PLATE LH Installation
42. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH Installation
43. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH Installation
44. INSTALL COWL SIDE TRIM BOARD RH Installation
45. INSTALL COWL SIDE TRIM BOARD LH Installation
46. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY RH Installation
47. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY LH Installation
48. INSTALL FRONT DOOR SCUFF PLATE RH Installation
49. INSTALL FRONT DOOR SCUFF PLATE LH Installation
50. INSTALL LUGGAGE COMPARTMENT TRIM INNER PAD (for 60/40 Split Seat Type) Installation
51. INSTALL SPARE WHEEL COVER ASSEMBLY (for 60/40 Split Seat Type) Installation
52. INSTALL LUGGAGE COMPARTMENT FLOOR MAT (for 60/40 Split Seat Type) Installation
53. INSTALL REAR SEATBACK ASSEMBLY (for Fixed Seat Type) Installation
54. INSTALL REAR SEATBACK ASSEMBLY LH (for 60/40 Split Seat Type) Installation
55. INSTALL REAR SEATBACK ASSEMBLY RH (for 60/40 Split Seat Type) Installation
56. INSTALL REAR SEAT CUSHION COVER PAD SUB-ASSEMBLY Installation
57. INSTALL FRONT SEAT ASSEMBLY LH Installation
58. INSTALL FRONT SEAT ASSEMBLY RH Installation
59. INSTALL FRONT SEAT HEADREST ASSEMBLY Installation
60. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
61. INSPECT SRS WARNING LIGHT
