SUPPLEMENTAL RESTRAINT SYSTEM: FRONT PASSENGER AIRBAG ASSEMBLY (for Sedan): INSTALLATION

INSTALLATION
CAUTION: Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing Service Precautions.

1. REMOVE INSTRUMENT PANEL WIRE ASSEMBLY





(a) Connect the 2 airbag connectors to install the instrument panel wire.
NOTE: Lock the locking button securely.

2. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY (w/ Front Passenger Airbag)

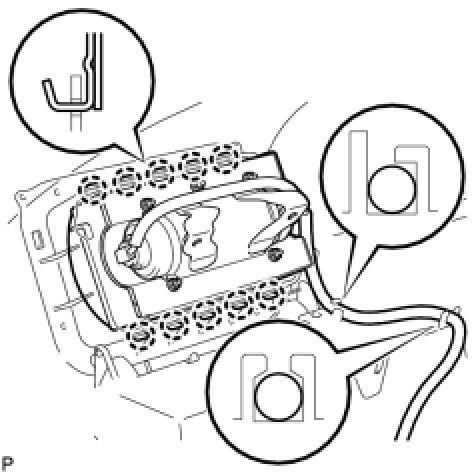

(a) Engage the 10 hooks so that the connector side faces the outside of the vehicle, and install the instrument panel passenger airbag.
(b) Install the wire harness onto the 2 claws of the instrument panel.
3. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY Installation
4. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation
5. INSTALL FRONT PILLAR GARNISH RH Installation
6. INSTALL FRONT PILLAR GARNISH LH Installation
7. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH Installation
8. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH Installation
9. INSTALL COMBINATION METER ASSEMBLY Installation
10. INSTALL INSTRUMENT CLUSTER FINISH NO.1 PANEL Installation
11. INSTALL INSTRUMENT PANEL FINISH PANEL END RH Installation
12. INSTALL INSTRUMENT PANEL FINISH PANEL END LH Installation
13. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER CENTER Installation
14. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
15. CHECK SRS WARNING LIGHT
Diagnosis System
