Seat Occupant Classification Module - Air Bag: Locations

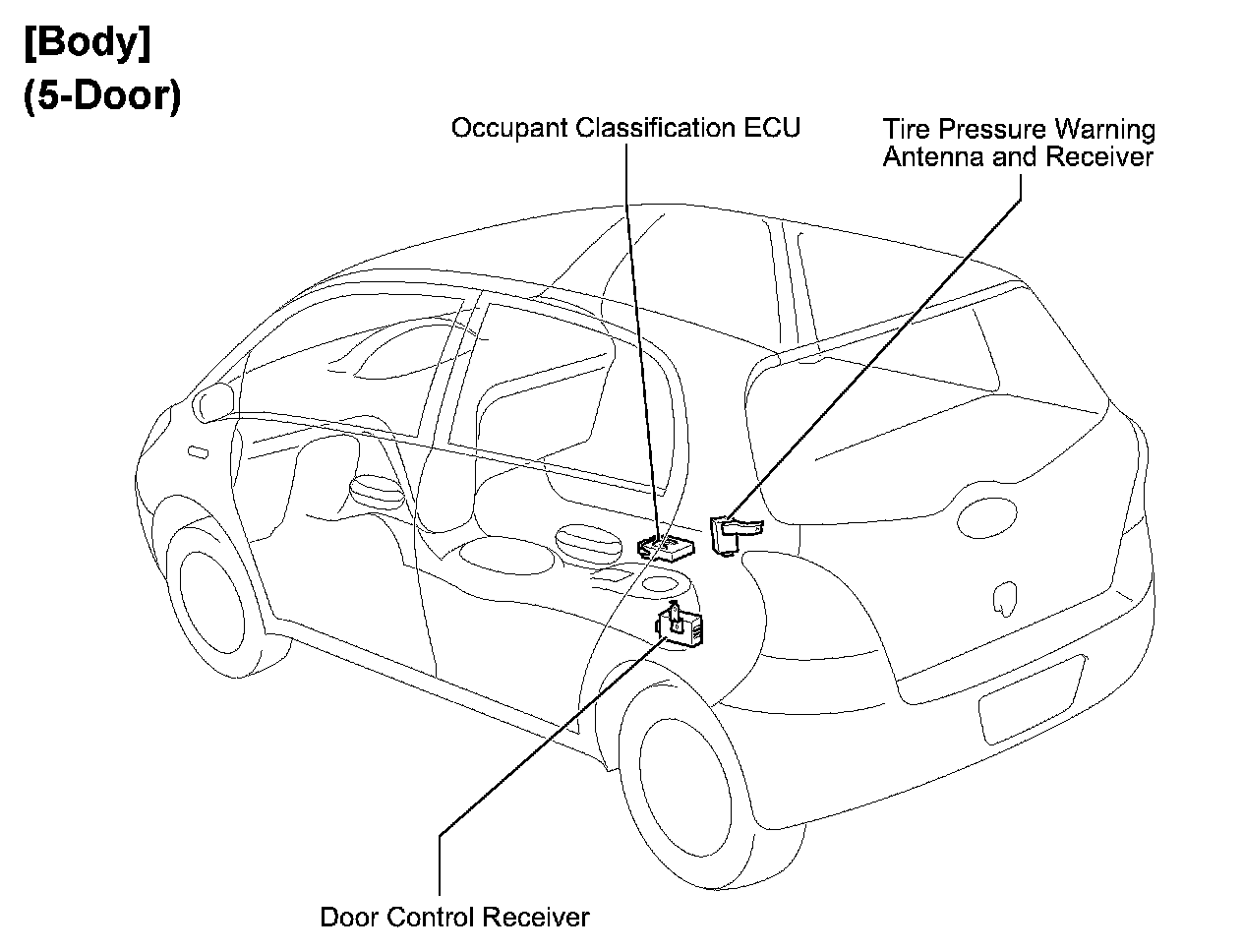

Body (5-Door):

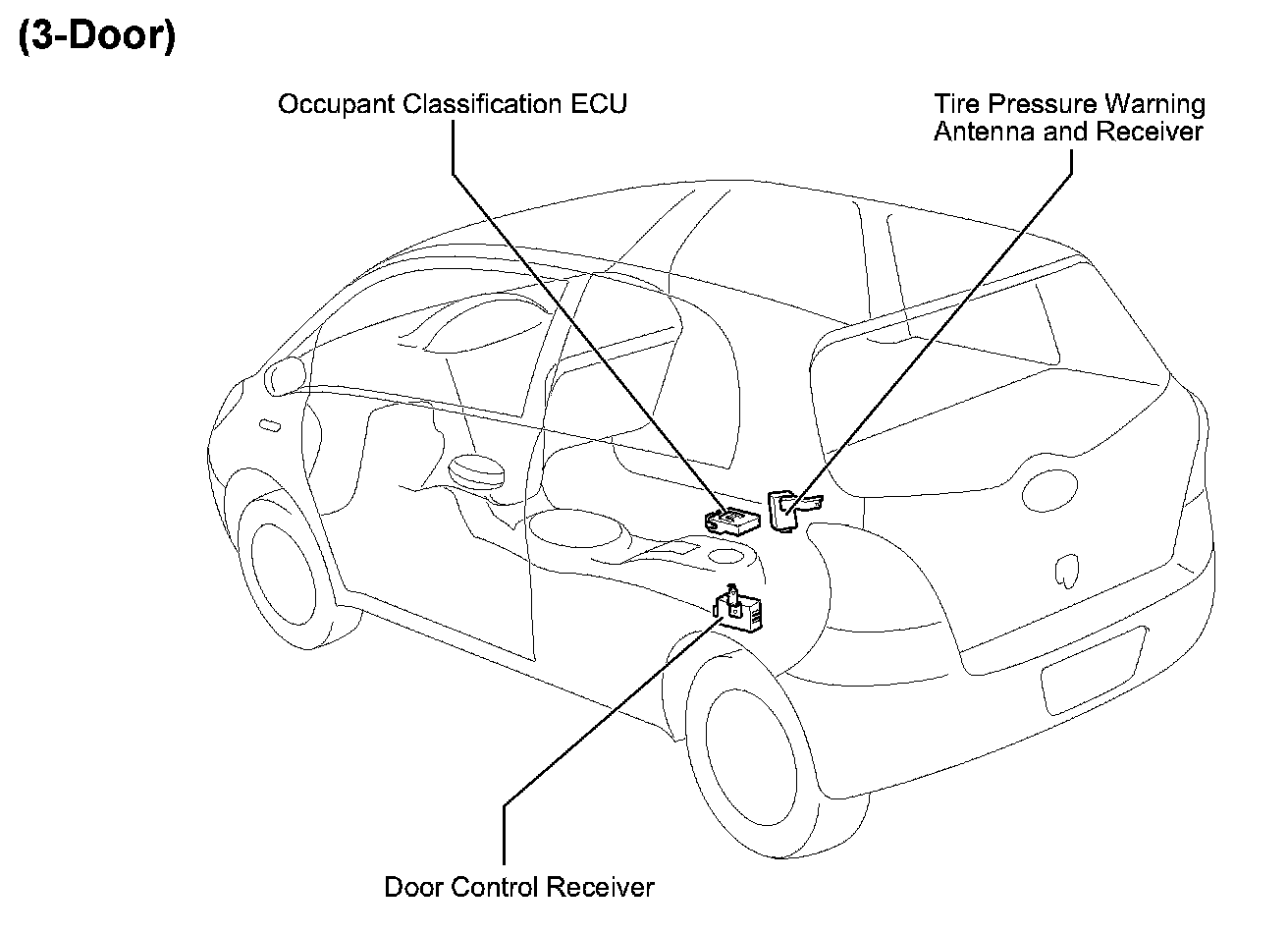

Body (3-Door):

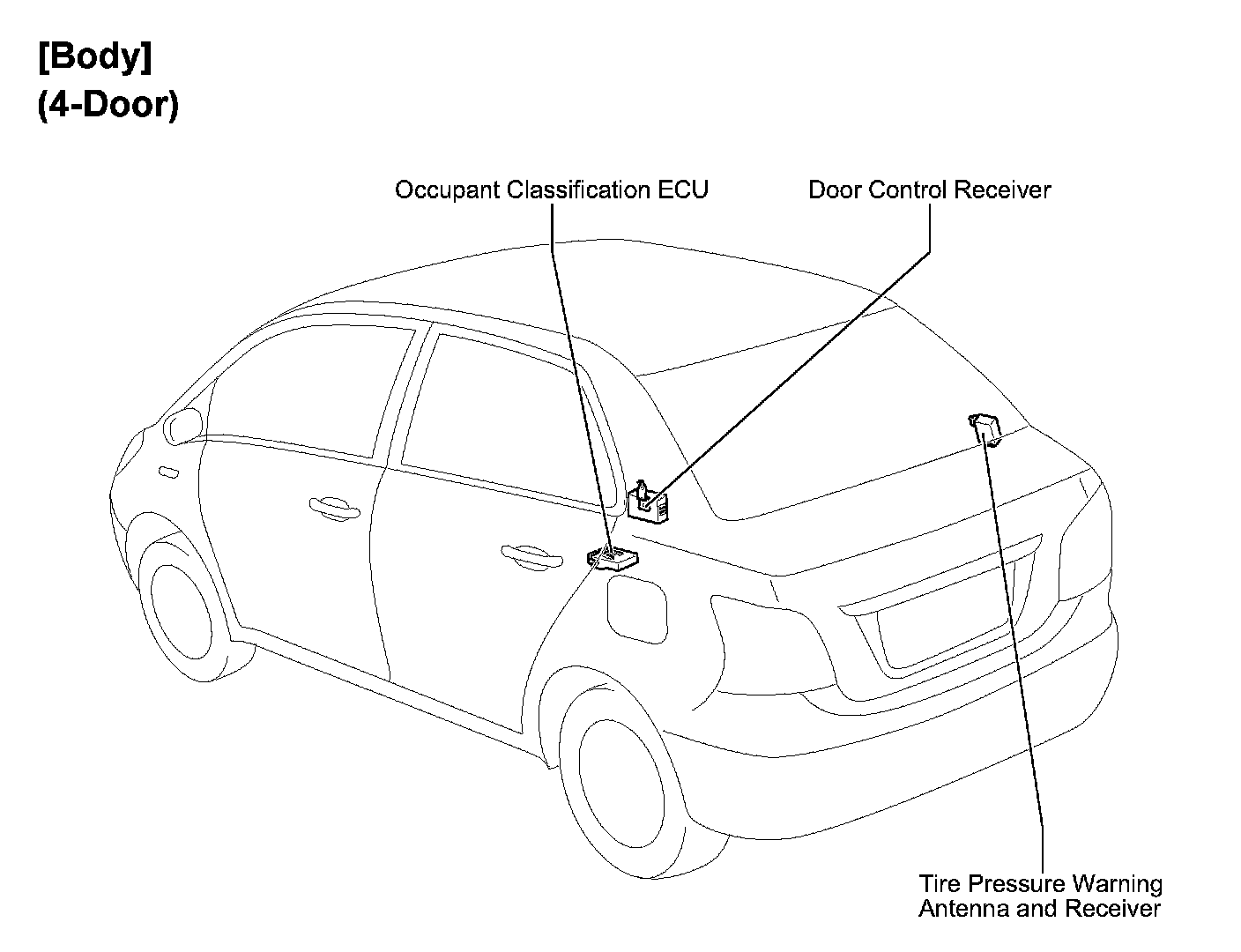

Body (4-Door):
