Removal

SUPPLEMENTAL RESTRAINT SYSTEM: SEAT POSITION SENSOR: REMOVAL

REMOVAL
CAUTION: Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.
NOTE: Always use "Torx" socket wrench E10 when removing the front seat.
HINT: Installation is in the reverse order of removal.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE FRONT SEAT HEADREST ASSEMBLY (for Sedan) Removal
3. REMOVE FRONT SEAT HEADREST ASSEMBLY (for Hatchback) Removal
4. REMOVE FRONT SEAT ASSEMBLY LH (for Sedan) Removal
5. REMOVE FRONT SEAT ASSEMBLY LH (for Hatchback) Removal

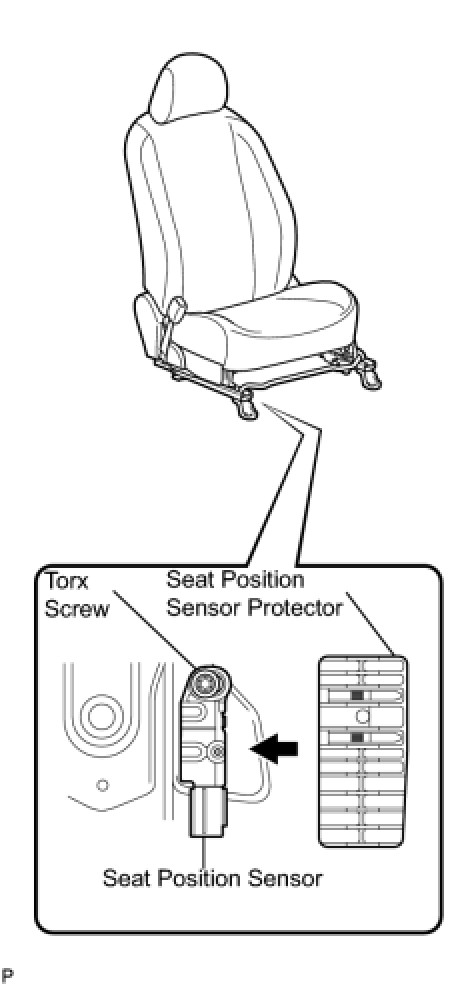

6. REMOVE SEAT SLIDE POSITION SENSOR PROTECTOR
(a) Remove the seat slide position sensor protector from the seat position airbag sensor.
7. REMOVE SEAT POSITION AIRBAG SENSOR





(a) Disconnect the connector from the seat position airbag sensor.
(b) Using "Torx" socket wrench T30, remove the torx screw and the seat position airbag sensor.
