SEAT BELT: CHILD RESTRAINT SEAT ANCHOR BRACKET (for Sedan): INSTALLATION

INSTALLATION

1. INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET




HINT: Use the same procedure to install all the child restraint seat tether anchor brackets.

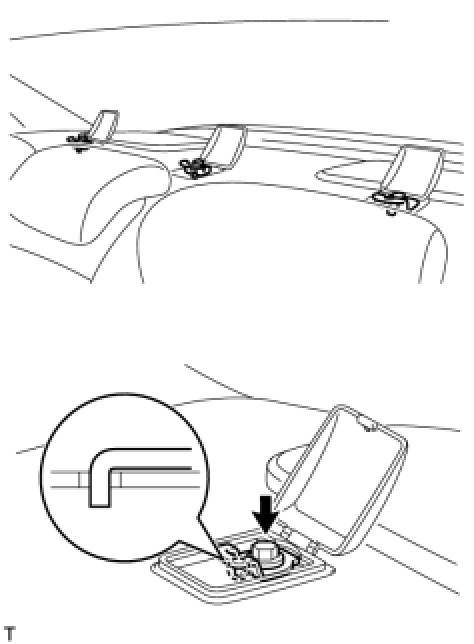

(a) Insert the hook into the body hole and install the child restraint seat tether anchor bracket with the bolt.
Torque: 42 Nm (430 kgf-cm, 31 ft-lbf)

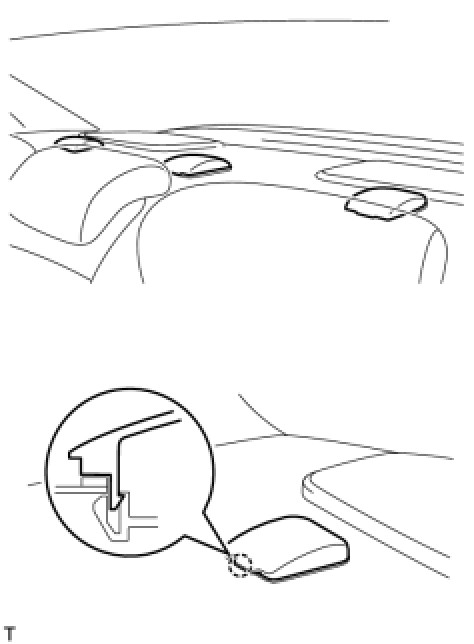

(b) Engage the claw and close the package tray rim cover.
