Removal

SEAT BELT: CHILD RESTRAINT SEAT ANCHOR BRACKET (for Sedan): REMOVAL

REMOVAL

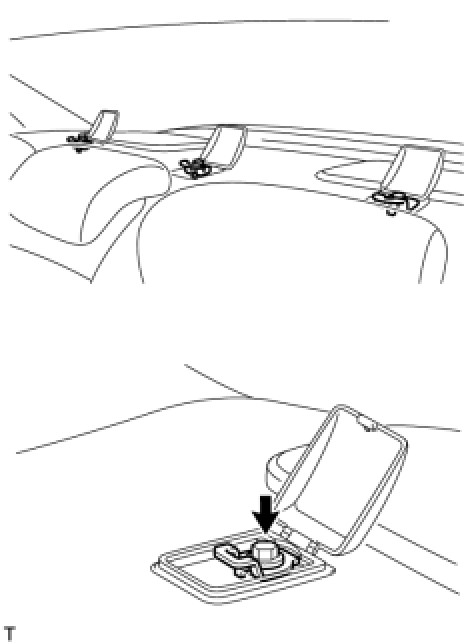

1. REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET




HINT: Use the same procedure to remove all the child restraint seat tether anchor brackets.

(a) Disengage the claw and open the package tray trim cover.





(b) Remove the bolt and the child restraint seat tether anchor bracket.
