Seat Belt Systems: Description and Operation

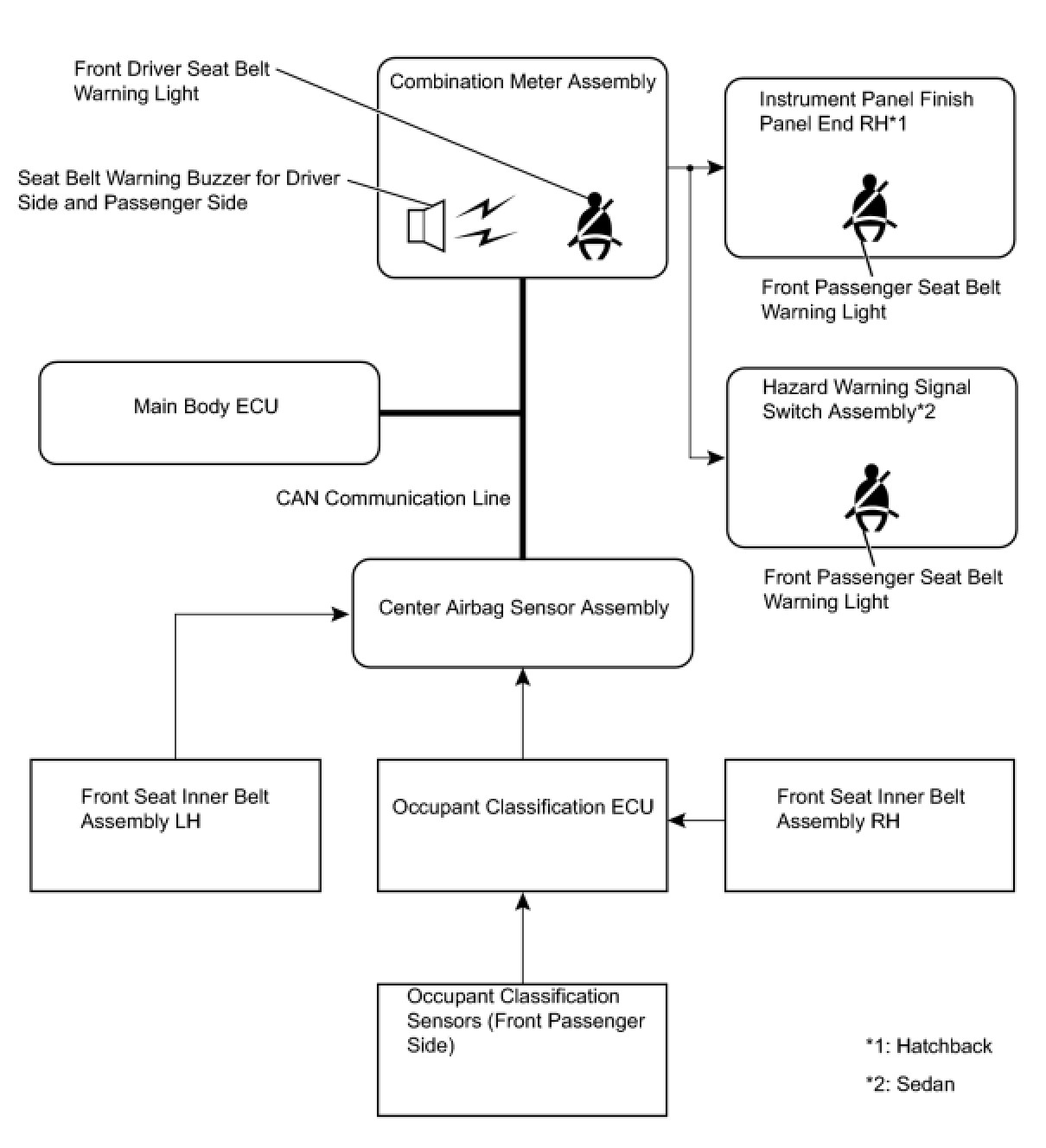

SEAT BELT: SEAT BELT WARNING SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM

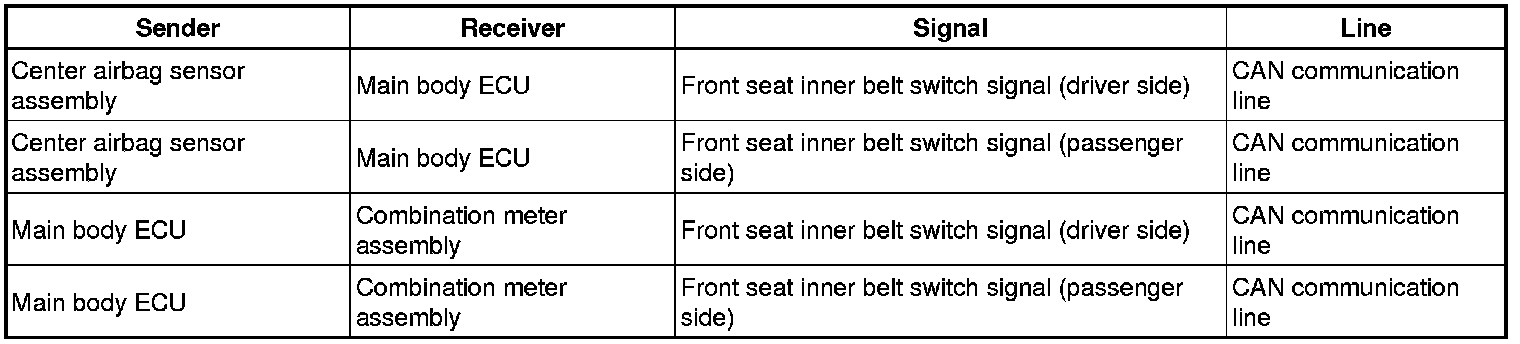

Communication table:






SEAT BELT: SEAT BELT WARNING SYSTEM: SYSTEM DESCRIPTION

SYSTEM DESCRIPTION

1. SEAT BELT WARNING SYSTEM DESCRIPTION
If a seat belt is not fastened, this system flashes the seat belt warning light and sounds the seat belt warning buzzer as a reminder.
2. FUNCTIONS OF MAIN COMPONENTS






3. SYSTEM OPERATION

- When the ignition switch is ON, this system detects the condition of the seat belts based on signals from the front seat inner belt switches (for driver and front passenger seats) and the occupant classification sensor (front passenger side only).
