Front Passenger Seat Belt Warning Light (for Sedan)

SEAT BELT: FRONT PASSENGER SEAT BELT WARNING LIGHT (for Sedan): INSPECTION

INSPECTION

1. INSPECT HAZARD WARNING SIGNAL SWITCH ASSEMBLY (Built in Front Passenger Seat Belt Warning Light)





(a) Check the operation.

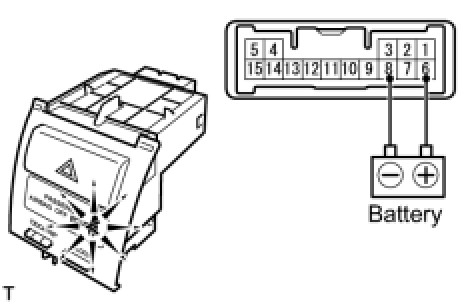

(1) Apply battery voltage to the terminals and check that the indicator illuminates.

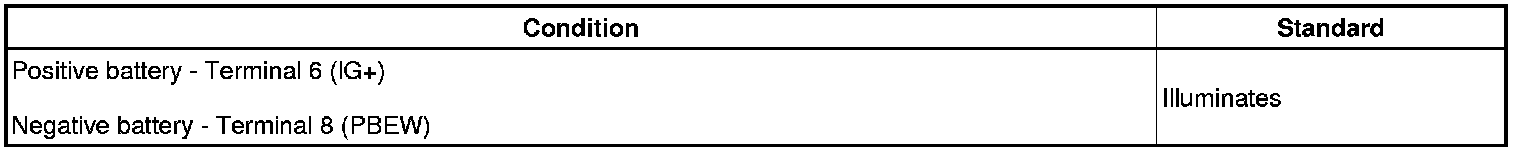

Standard:






If the result is not as specified, replace the hazard warning signal switch.
