SEAT BELT: FRONT SEAT INNER BELT ASSEMBLY (for Hatchback): INSTALLATION

INSTALLATION
CAUTION: Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing (w/ Front Seat Side Airbag) Service Precautions.
NOTE: Always use "Torx" socket wrench E10 when installing the front seat.
HINT: The procedure described below is for the driver side. Use the same procedure for both the driver and front passenger sides, unless otherwise specified.

1. INSTALL FRONT SEAT INNER BELT ASSEMBLY
(a) for Driver Side:

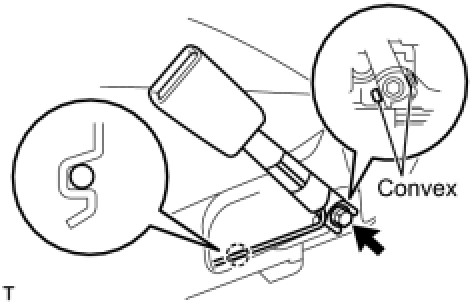

(1) Install the front seat inner belt with the bolt.
Torque: 42 Nm (430 kgf-cm, 31 ft-lbf)
NOTE: Do not place the front seat inner belt over the convex areas of the front seat adjuster frame.
(2) Install the wire harness into the claw of the front seat cushion shield.




(3) Install the 2 wiring harness clamps.
(4) Install the buckle switch connector.
(5) Connect the seat position sensor connector.
(b) for Front Passenger Side:

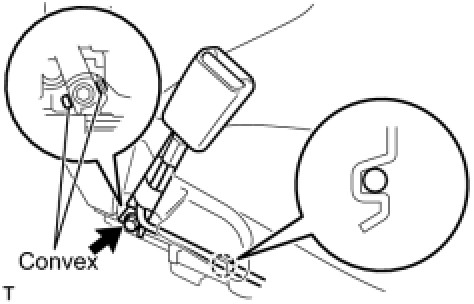

(1) Install the front seat inner belt with the bolt.
Torque: 42 Nm (430 kgf-cm, 31 ft-lbf)
NOTE: Do not place the front seat inner belt over the convex areas of the front seat adjuster frame.
(2) Install the wiring harness onto the claw of the front seat cushion shield.




(3) Install the 2 wiring harness clamps.
(4) Install the buckle switch connector.
2. INSTALL FRONT SEAT ASSEMBLY Installation
3. INSTALL FRONT SEAT HEADREST ASSEMBLY Installation
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
5. INSPECT SRS WARNING LIGHT (w/ Front Seat Side Airbag)
Diagnosis System
