SEAT BELT: FRONT SEAT INNER BELT ASSEMBLY (for Sedan): INSTALLATION

INSTALLATION
CAUTION: Some of these service operations affect the SRS airbag system. Read the precautionary concerning the SRS airbag system before servicing (w/ Front Seat Side Airbag) Service Precautions.
NOTE: Always use "Torx" socket wrench E10 when installing the front seat.
HINT: The procedure described below is for the driver side. Use the same procedure for both the front passenger and drive sides, unless otherwise specified.

1. INSTALL FRONT SEAT INNER BELT ASSEMBLY





(a) Install the front seat inner belt with the nut.
Torque: 42 Nm (430 kgf-cm, 31 ft-lbf)

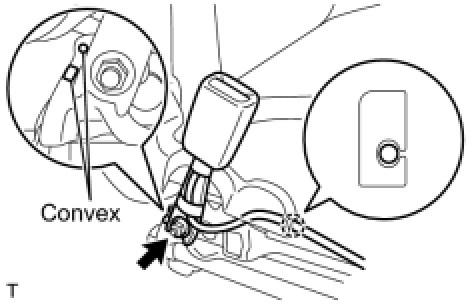

NOTE: Do not place the front seat inner belt over the convex areas of the front seat adjuster frame.

(b) Install the wire harness into the claw of the front seat cushion inner shield.





(c) for Driver Side:
(1) Install the 2 clamps.
(2) Install the connector.
(3) Connect the seat position sensor connector.





(d) for Front Passenger Side:
(1) Install the 2 clamps.
(2) Install the connector.
2. INSTALL FRONT SEAT ASSEMBLY Installation
3. INSTALL FRONT SEAT HEADREST ASSEMBLY Installation
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
5. INSPECT SRS WARNING LIGHT (w/ Front Seat Side Airbag)
Diagnosis System
