Installation

SEAT BELT: REAR CENTER SEAT INNER BELT ASSEMBLY (for Hatchback RH Side): INSTALLATION

INSTALLATION
NOTE: Always use "Torx" socket wrench E10 when installing the rear seat.

1. INSTALL REAR CENTER SEAT INNER BELT ASSEMBLY

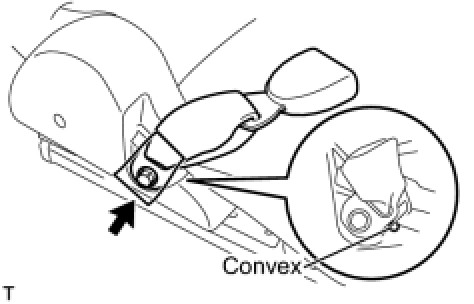

(a) for 60/40 Split Seat Type:
(1) Install the rear center seat inner belt with the bolt.
Torque: 42 Nm (430 kgf-cm, 31 ft-lbf)
NOTE: Do not place the anchor plate over the convex area of the rear seat back frame.

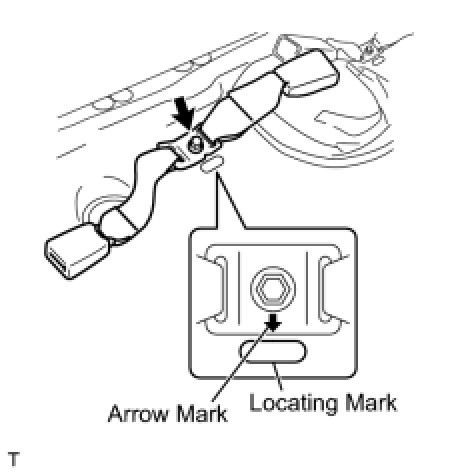

(b) for Hold Down Seat Type:
(1) Install the rear center seat inner belt with the bolt.
Torque: 42 Nm (430 kgf-cm, 31 ft-lbf)
NOTICE:
- Install the anchor plate with the arrow mark facing forward.
- Do not place the anchor plate over the locating mark area of the floor panel.

2. INSTALL REAR SEAT ASSEMBLY (for 60/40 Split Seat Type) Installation
3. INSTALL NO. 2 REAR SEAT LEG COVER (for 60/40 Split Seat Type) Installation
4. INSTALL NO. 1 REAR SEAT LEG COVER (for 60/40 Split Seat Type) Installation
5. INSTALL REAR SEAT CUSHION COVER PAD SUB-ASSEMBLY (for Hold Down Seat Type) Installation
6. INSTALL DECK FLOOR BOX (for 60/40 Split Seat Type)
HINT: Use the same procedure as for the RH side Installation.

7. INSTALL DECK BOARD SUB-ASSEMBLY (for 60/40 Split Seat Type) Installation
8. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (for 60/40 Split Seat Type) Installation
