Installation

SEAT BELT: REAR CENTER SEAT INNER BELT ASSEMBLY (for Sedan): INSTALLATION

INSTALLATION

1. INSTALL REAR CENTER SEAT INNER BELT ASSEMBLY

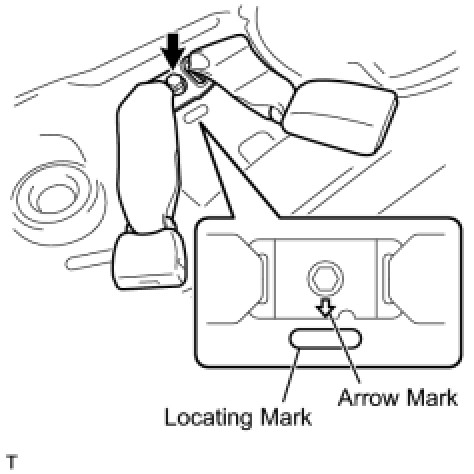

(a) for RH Side (for 60/40 Split Seat Type):




(1) Install the rear center seat inner belt with the bolt.
Torque: 42 Nm (430 kgf-cm, 31 ft-lbf)
NOTICE:
- Install the anchor plate with the arrow mark facing forward.
- Do not place the anchor plate over the locating mark area of the floor panel.

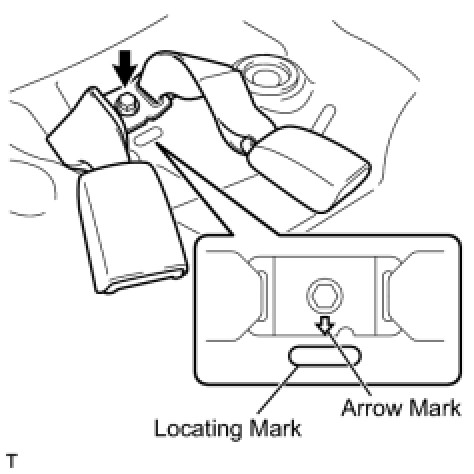

(b) for LH Side:
(1) Install the rear center seat inner belt with the bolt.
Torque: 42 Nm (430 kgf-cm, 31 ft-lbf)
NOTICE:
- Install the anchor plate with the arrow mark facing forward.
- Do not place the anchor plate over the locating mark area of the floor panel.

2. INSTALL REAR SEAT CUSHION COVER PAD SUB-ASSEMBLY
(a) for 60/40 Split Seat Type:
(1) Install the rear seat cushion cover pad Installation.
(b) for Fixed Seat Type:
(1) Install the rear seat cushion cover pad Installation.
