SEAT BELT: REAR CENTER SEAT OUTER BELT ASSEMBLY (for Hatchback 3 Door): INSTALLATION

INSTALLATION
CAUTION: Always use "Torx" socket wrench E10 when installing the rear seat.

1. INSTALL REAR SEAT SHOULDER BELT COVER Installation
2. INSTALL ROOF HEADLINING ASSEMBLY Installation
3. INSTALL SEAT BELT ANCHOR COVER Installation
4. INSTALL REAR CENTER SEAT OUTER BELT ASSEMBLY Installation
5. INSTALL ROOF SIDE INNER GARNISH RH

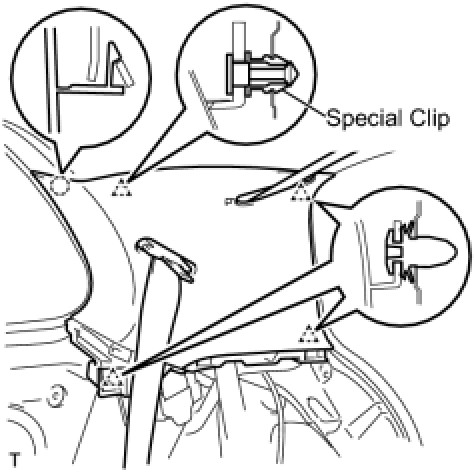

(a) w/ Curtain Shield Airbag:
(1) Install a new special clip onto the roof side inner garnish.
(2) Pass the rear seat outer belt and the rear center seat outer belt through the slit in the roof side inner garnish.
(3) Engage the 4 clips and the claw and install the roof side inner garnish.

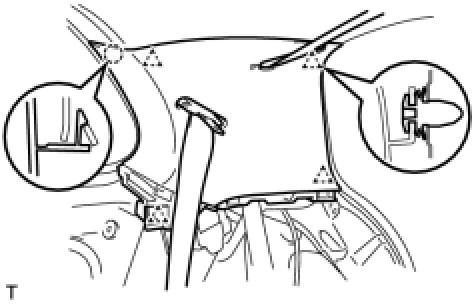

(b) w/o Curtain Shield Airbag:
(1) Pass the rear seat outer belt and the rear center seat outer belt through the slit in the roof side inner garnish.
(2) Engage the 4 clips and the claw and install the roof side inner garnish.

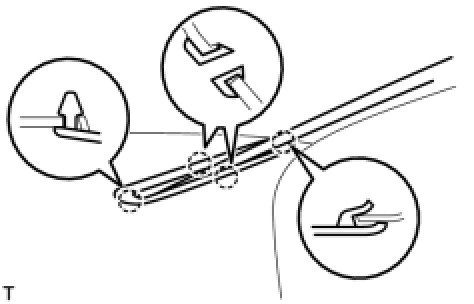

(c) Engage the 4 claws and install the center belt guide.
6. INSTALL ROOF SIDE INNER GARNISH LH Installation
7. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH Installation
8. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH Installation
9. INSTALL REAR SEAT OUTER BELT ASSEMBLY RH Installation
10. INSTALL REAR SEAT OUTER BELT ASSEMBLY LH Installation
11. INSTALL REAR DECK TRIM COVER Installation
12. INSTALL FRONT QUARTER TRIM PANEL ASSEMBLY RH Installation
13. INSTALL FRONT QUARTER TRIM PANEL ASSEMBLY LH Installation
14. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH Installation
15. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
HINT: Use the same procedure as for the RH side.

16. INSTALL FRONT DOOR SCUFF PLATE RH Installation
17. INSTALL FRONT DOOR SCUFF PLATE LH Installation
18. INSTALL REAR SEAT ASSEMBLY LH (for 60/40 Split Seat Type) Installation
19. INSTALL REAR SEAT ASSEMBLY RH (for 60/40 Split Seat Type) Installation
20. INSTALL NO. 2 REAR SEAT LEG COVER (for 60/40 Split Seat Type) Installation
21. INSTALL NO. 1 REAR SEAT LEG COVER (for 60/40 Split Seat Type)
(a) for RH Side:
(1) Install the No. 1 rear seat leg cover Installation.
(b) for LH Side:
(1) Install the No. 1 rear seat leg cover Installation.
22. INSTALL REAR SEATBACK ASSEMBLY (for Hold Down Seat Type) Installation
23. INSTALL REAR SEAT CUSHION COVER PAD SUB-ASSEMBLY (for Hold Down Seat Type) Installation
24. INSTALL DECK FLOOR BOX RH Installation
25. INSTALL DECK FLOOR BOX LH Installation
26. INSTALL DECK BOARD SUB-ASSEMBLY Installation
27. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY Installation
28. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
