Installation

SEAT BELT: REAR SEAT INNER BELT ASSEMBLY (for Hatchback LH Side): INSTALLATION

INSTALLATION
NOTE: Always use "Torx" socket wrench E10 when installing the rear seat.

1. INSTALL REAR SEAT INNER BELT ASSEMBLY
(a) for 60/40 Split Seat Type:




(1) Install the rear seat inner belt with the bolt.
Torque: 42 Nm (430 kgf-cm, 31 ft-lbf)

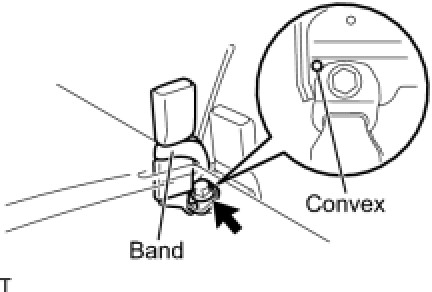

NOTE: Do not place the anchor plate over the convex area of the rear seat back frame.
(2) Install the belt into the band.




(3) Install the rear seat cushion.
(4) Using "Torx" socket wrench E10, tighten the 3 bolts in the sequence shown in the illustration.
Torque: 37 Nm (375 kgf-cm, 27 ft-lbf)





(b) for Hold Down Seat Type:
(1) Install the rear seat inner belt with the bolt.
Torque: 42 Nm (430 kgf-cm, 31 ft-lbf)
NOTICE:
- Install the anchor plate with the arrow mark facing forward.
- Do not place the anchor plate over the locating mark area of the floor panel.

2. INSTALL NO. 2 REAR SEAT LEG COVER (for 60/40 Split Seat Type) Installation
3. INSTALL NO. 1 REAR SEAT LEG COVER (for 60/40 Split Seat Type) Installation
4. INSTALL REAR SEAT CUSHION COVER PAD SUB-ASSEMBLY (for Hold Down Seat Type) Installation
