SEAT BELT: REAR SEAT INNER BELT ASSEMBLY (for Hatchback RH Side): INSTALLATION

INSTALLATION
NOTE: Always use "Torx" socket wrench E10 when installing the rear seat.

1. INSTALL REAR SEAT INNER BELT ASSEMBLY





(a) for 60/40 Split Seat Type:
(1) Install the rear seat inner belt with the bolt.
Torque: 42 Nm (430 kgf-cm, 31 ft-lbf)

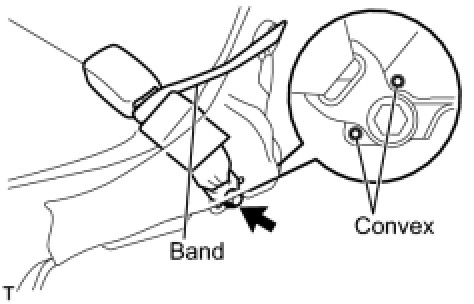

NOTE: Do not place the anchor plate over the convex areas of the rear seat back frame.
(2) Install the belt into the band.





(b) for Hold Down Seat Type:
(1) Install the rear seat inner belt with the bolt.
Torque: 42 Nm (430 kgf-cm, 31 ft-lbf)
NOTICE:
- Install the anchor plate with the arrow mark facing forward.
- Do not place the anchor plate over the locating mark area of the floor panel.

2. INSTALL REAR SEAT ASSEMBLY (for 60/40 Split Seat Type) Installation
3. INSTALL NO. 1 REAR SEAT LEG COVER (for 60/40 Split Seat Type) Installation
4. INSTALL REAR SEAT CUSHION COVER PAD SUB-ASSEMBLY (for Hold Down Seat Type) Installation
5. INSTALL DECK FLOOR BOX (for 60/40 Split Seat Type) Installation
6. INSTALL DECK BOARD SUB-ASSEMBLY (for 60/40 Split Seat Type) Installation
7. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (for 60/40 Split Seat Type) Installation
