Removal

SEAT BELT: REAR SEAT INNER BELT ASSEMBLY (for Hatchback RH Side): REMOVAL

REMOVAL
NOTE: Always use "Torx" socket wrench E10 when removing the rear seat.

1. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (for 60/40 Split Seat Type) Removal
2. REMOVE DECK BOARD SUB-ASSEMBLY (for 60/40 Split Seat Type) Removal
3. REMOVE DECK FLOOR BOX (for 60/40 Split Seat Type) Removal
4. REMOVE NO. 1 REAR SEAT LEG COVER (for 60/40 Split Seat Type) Removal
5. REMOVE REAR SEAT ASSEMBLY (for 60/40 Split Seat Type) Removal
6. REMOVE REAR SEAT CUSHION COVER PAD SUB-ASSEMBLY (for Hold Down Seat Type) Removal
7. REMOVE REAR SEAT INNER BELT ASSEMBLY





(a) for 60/40 Split Seat Type:

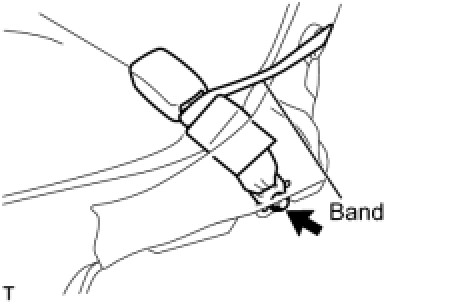

(1) Remove the belt from the band.
(2) Remove the bolt and the rear seat inner belt.





(b) for Hold Down Seat Type:
(1) Remove the bolt and the rear seat inner belt.
