SEAT BELT: REAR SEAT OUTER BELT ASSEMBLY (for Sedan): REMOVAL

REMOVAL
HINT: The procedure described below is for the RH side. Use the same procedure for both the RH and LH sides, unless otherwise specified.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (w/o Rear Spoiler)
2. REMOVE REAR SEAT CUSHION COVER PAD SUB-ASSEMBLY
(a) for 60/40 Split Seat Type:
(1) Remove the rear seat cushion cover pad Removal.
(b) for Fixed Seat Type:
(1) Remove the rear seat cushion cover pad Removal.
3. REMOVE REAR SEATBACK ASSEMBLY RH (for 60/40 Split Seat Type) Removal
4. REMOVE REAR SEATBACK ASSEMBLY LH (for 60/40 Split Seat Type) Removal
5. REMOVE REAR SEATBACK ASSEMBLY (for Fixed Seat Type) Removal
6. REMOVE LUGGAGE COMPARTMENT FLOOR MAT (for 60/40 Split Seat Type) Disassembly
7. REMOVE SPARE WHEEL COVER ASSEMBLY (for 60/40 Split Seat Type) Disassembly
8. REMOVE LUGGAGE COMPARTMENT TRIM INNER PAD (for 60/40 Split Seat Type) Disassembly
9. REMOVE REAR DOOR SCUFF PLATE RH Removal
10. REMOVE REAR DOOR SCUFF PLATE LH Removal
11. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH Removal
12. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH Removal
13. REMOVE REAR SEAT SIDE COVER RH Removal
14. REMOVE REAR SEAT SIDE COVER LH Removal
15. REMOVE ROOF SIDE INNER GARNISH RH Removal
16. REMOVE ROOF SIDE INNER GARNISH LH Removal
17. REMOVE HIGH MOUNTED STOP LIGHT ASSEMBLY (w/o Rear Spoiler) Removal
18. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY Removal
19. REMOVE REAR SEAT OUTER BELT ASSEMBLY

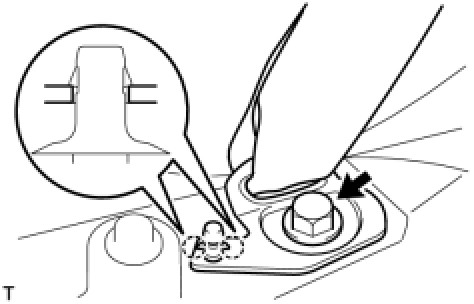

(a) Remove the bolt.
(b) Disengage the 2 claws and remove the anchor plate.

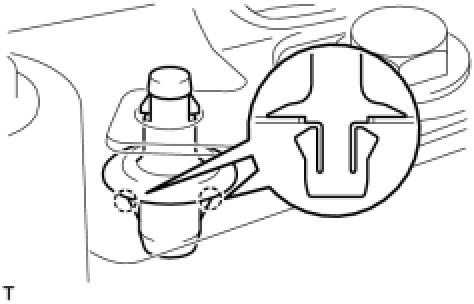

(a) Disengage the 2 claws and remove the seat belt hole seal.
