Diesel Data: Automotive Repair
Home >> Toyota >> 2009 >> Yaris L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Restraints and Safety Systems >> Specifications >> Mechanical Specifications

Mechanical Specifications








SERVICE SPECIFICATIONS: SUPPLEMENTAL RESTRAINT SYSTEM: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

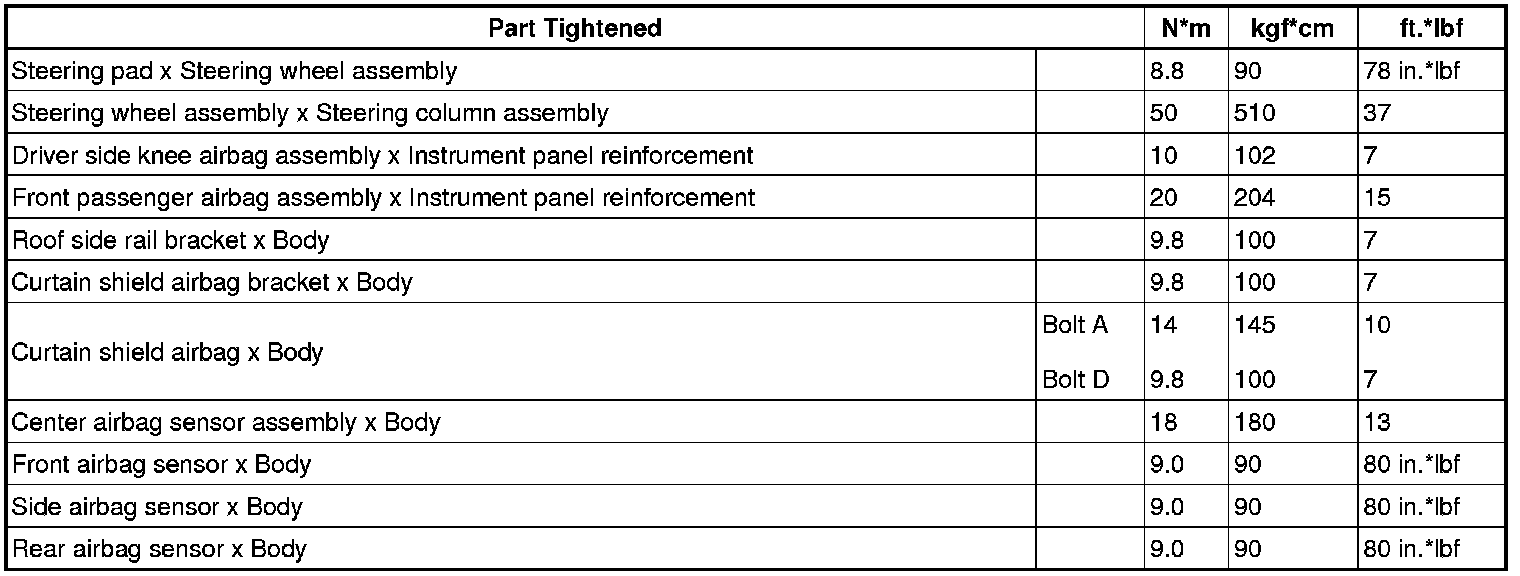

Hatchback:

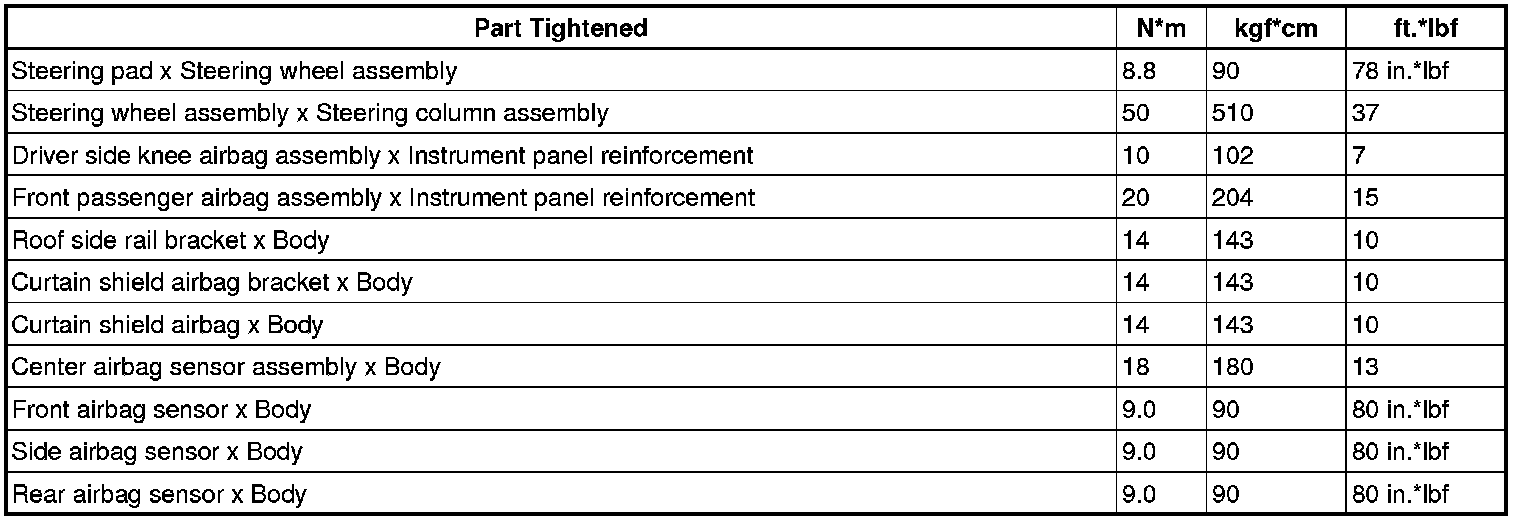

Sedan:
