Clutch Switch: Testing and Inspection

CRUISE CONTROL: CLUTCH SWITCH: INSPECTION

INSPECTION

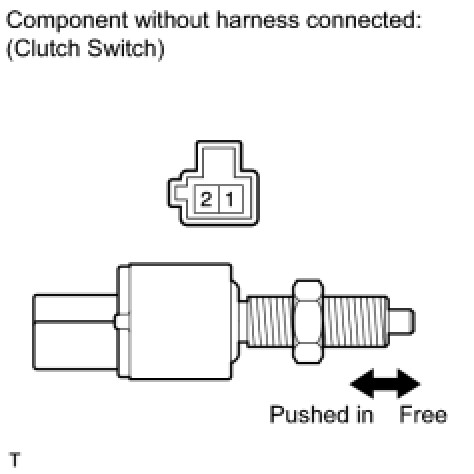

1. INSPECT CLUTCH SWITCH ASSEMBLY





(a) Remove the clutch switch.
(b) Measure the resistance and check the results in accordance with the value(s) in the table below.

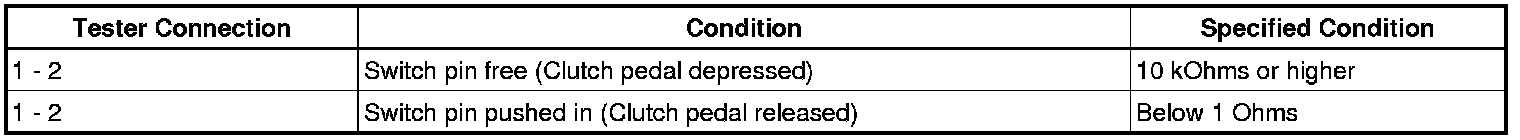

Standard resistance:





If the result is not as specified, replace the clutch switch.
