Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2009
>>
Yaris L4-1.5L (1NZ-FE)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - HVAC
>>
Ambient Temperature Sensor / Switch HVAC
>>
Service and Repair
>>
Components
Components
AIR CONDITIONING: AMBIENT TEMPERATURE SENSOR: COMPONENTS
COMPONENTS

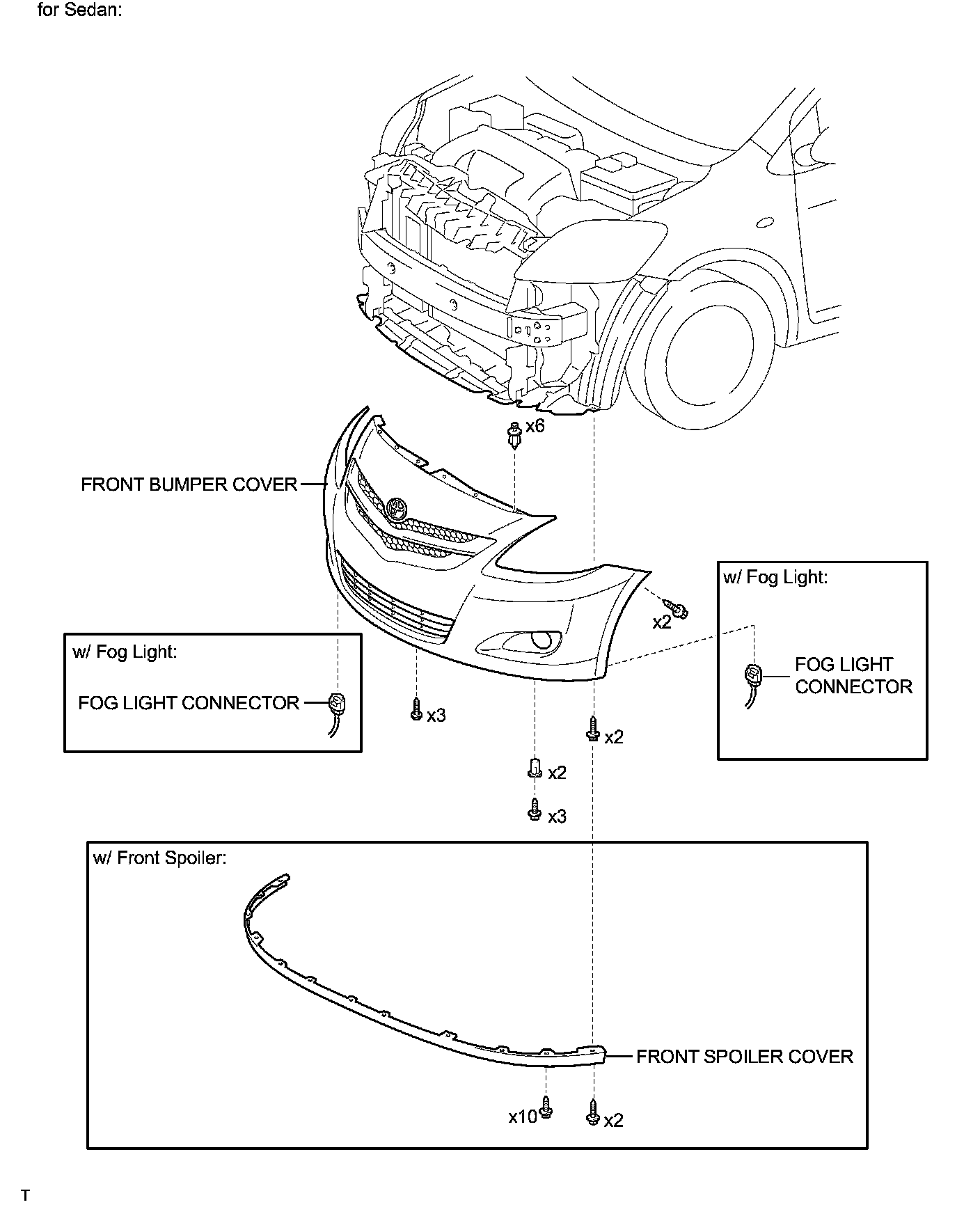

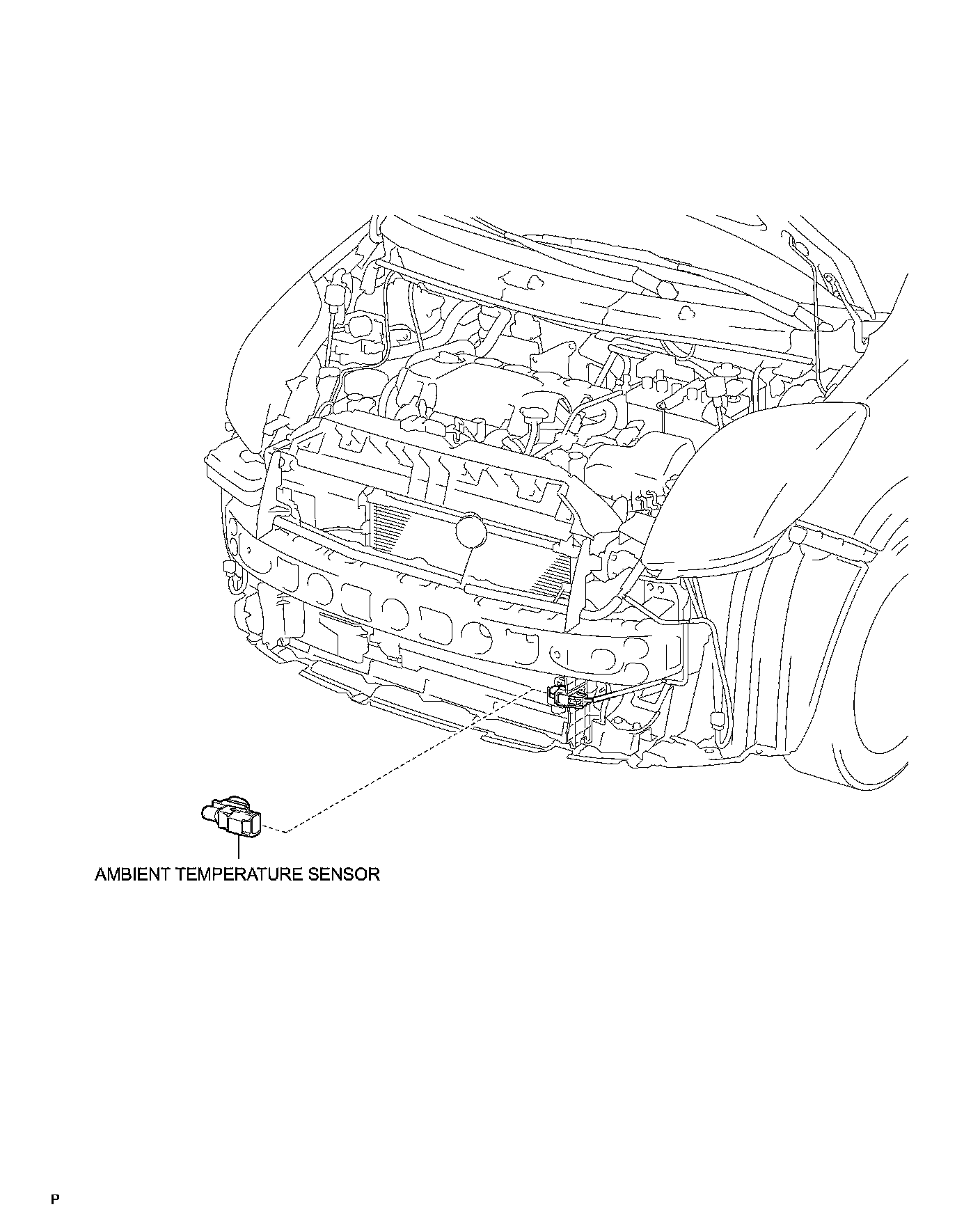

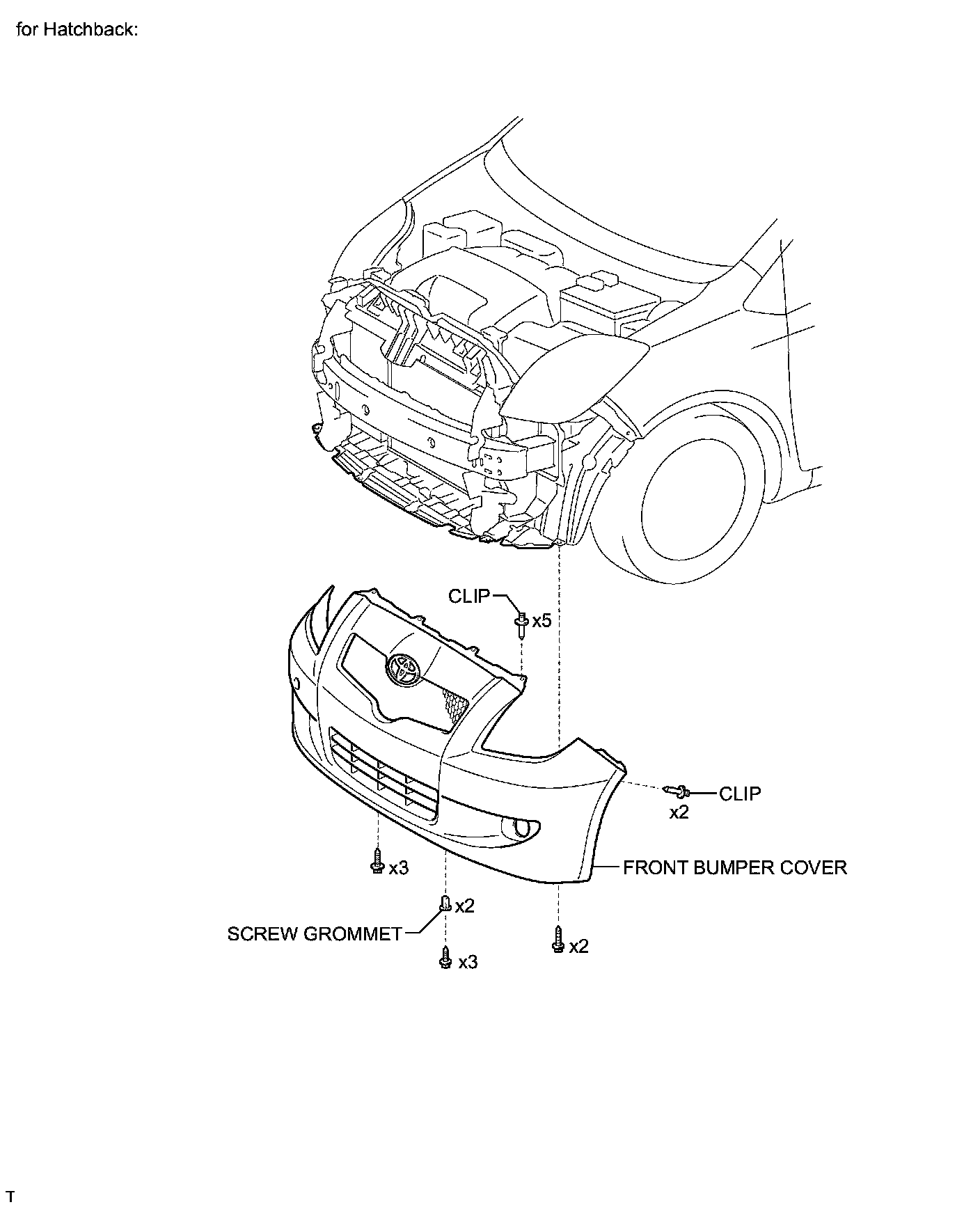

ILLUSTRATION
