Seat Belt Systems








SERVICE SPECIFICATIONS: SEAT BELT: SERVICE DATA

SERVICE DATA

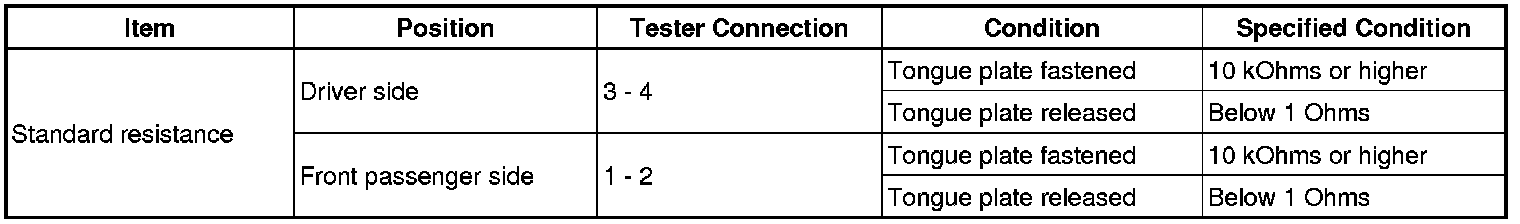

FRONT SEAT INNER BELT ASSEMBLY (for Sedan):





FRONT SEAT INNER BELT ASSEMBLY (for Hatchback):
