Seat Belt Systems








SERVICE SPECIFICATIONS: SEAT BELT: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

FRONT PASSENGER SEAT BELT WARNING LIGHT (for Sedan):





FRONT PASSENGER SEAT BELT WARNING LIGHT (for Hatchback):

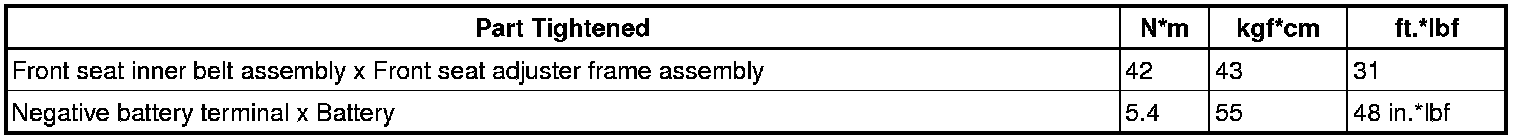

FRONT SEAT INNER BELT ASSEMBLY (for Sedan):





FRONT SEAT INNER BELT ASSEMBLY (for Hatchback):

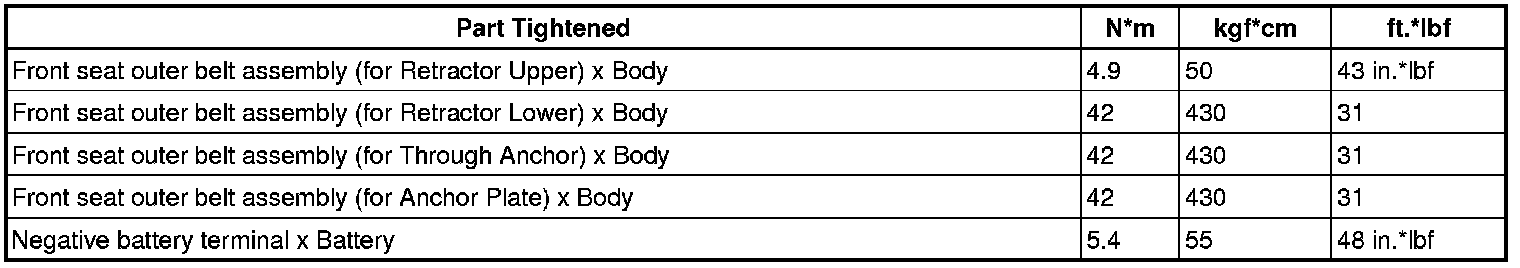

FRONT SEAT OUTER BELT ASSEMBLY (for Sedan):

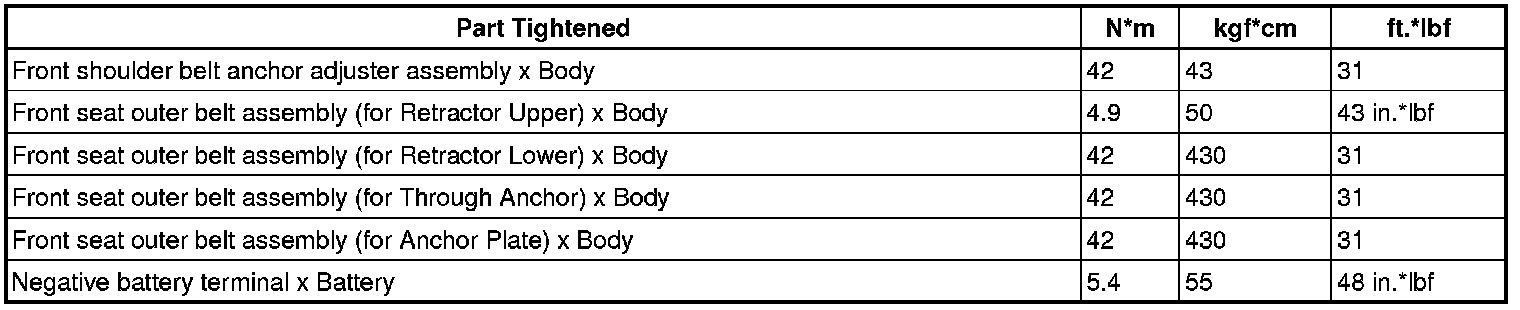

FRONT SEAT OUTER BELT ASSEMBLY (for Hatchback 5 Door):





FRONT SEAT OUTER BELT ASSEMBLY (for Hatchback 3 Door):

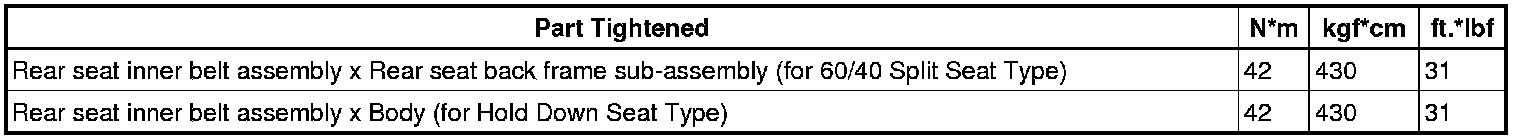

REAR SEAT INNER BELT ASSEMBLY (for Sedan):

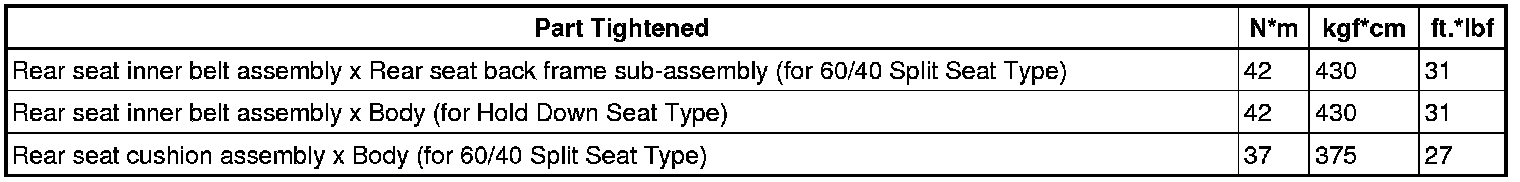

REAR SEAT INNER BELT ASSEMBLY (for Hatchback LH Side):





REAR SEAT INNER BELT ASSEMBLY (for Hatchback RH Side):

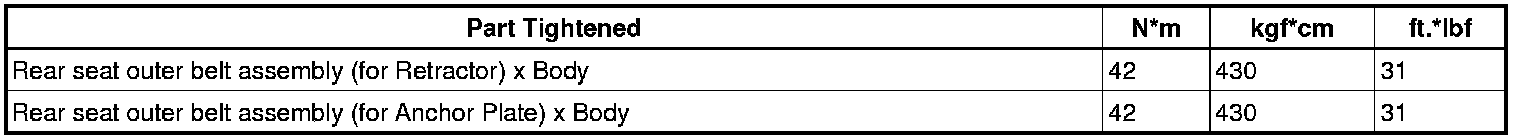

REAR SEAT OUTER BELT ASSEMBLY (for Sedan):

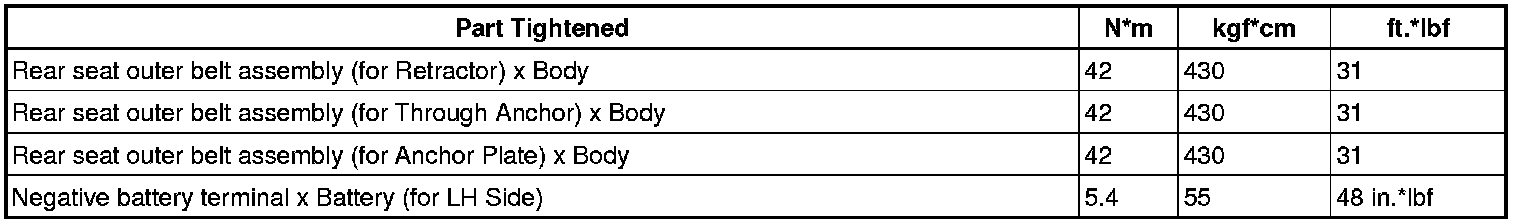

REAR SEAT OUTER BELT ASSEMBLY (for 5 Hatchback Door):





REAR SEAT OUTER BELT ASSEMBLY (for Hatchback 3 Door):

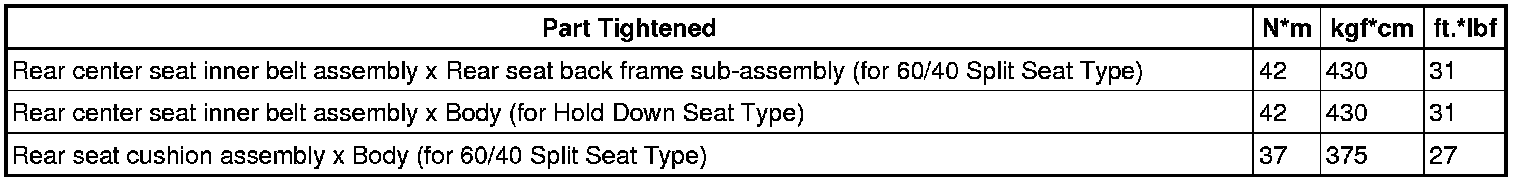

REAR CENTER SEAT INNER BELT ASSEMBLY (for Sedan):





REAR CENTER SEAT INNER BELT ASSEMBLY (for Hatchback LH Side):





REAR CENTER SEAT INNER BELT ASSEMBLY (for Hatchback RH Side):

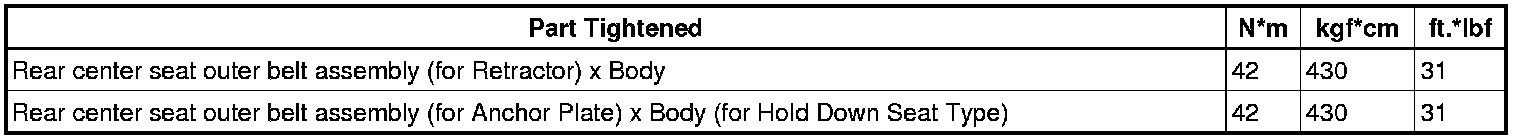

REAR CENTER SEAT OUTER BELT ASSEMBLY (for Sedan):





REAR CENTER SEAT OUTER BELT ASSEMBLY (for 5 Hatchback Door):

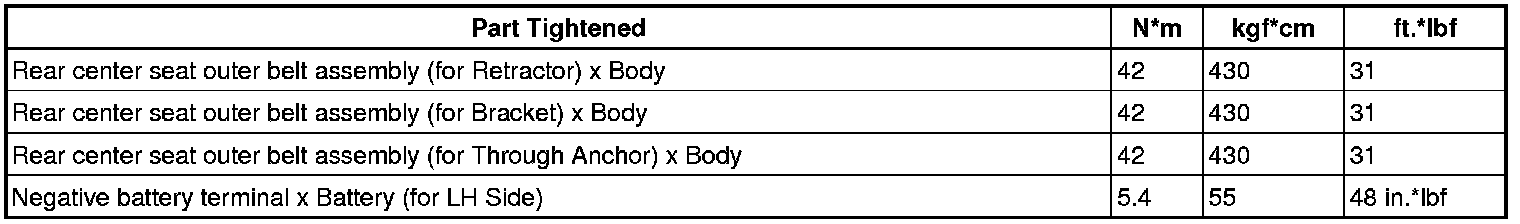

REAR CENTER SEAT OUTER BELT ASSEMBLY (for Hatchback 3 Door):
