System Specifications

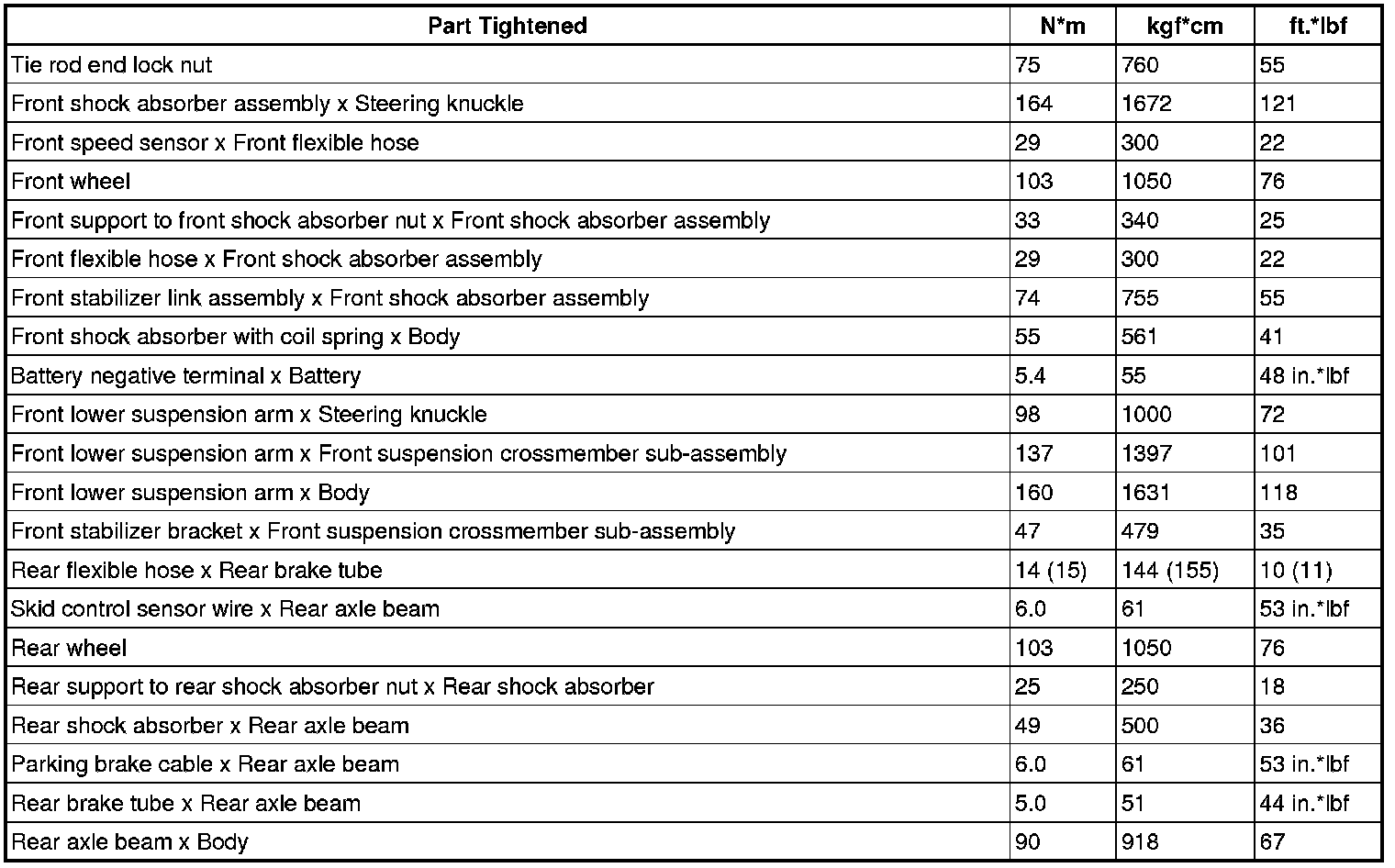

SERVICE SPECIFICATIONS: SUSPENSION: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

( ): for use without union nut wrench
